HD Electric DVM-80UVK

Universal Voltmeter Kit

Order #: DVM-80UVK

Mfg Part #: DVM-80UVK

$2,950.00 USD

Usually ships in 7-10 days

Free shipping over $250

This product is available for shipping to United States, Canada and Puerto Rico only

New Purchase Calibration Learn More

Save time and money by calibrating your new instrument before it leaves our warehouse, ensuring it arrives ready to be put into service. Find out how.

Add a Calibration to Your Item

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All HD Electric Products

Overview :

Product Highlights

  • Perform voltmeter and phasing operations for virtually all overhead & underground applications
  • Take measurements on secondary voltages starting at 5 Volts
  • Take measurements on primary voltages up to 80 Kilovolts
  • Take measurements on elbow test points with Test Point Feature
  • Peak voltage reading can be held using the new Peak Hold Feature
  • Perform underground cable fault testing with Cable Fault Tester
  • Test the voltmeter before and after use with Voltmeter Proof Tester
  • Digital Meter - reads in kilovolts, 3.5 digits with decimal point
  • Voltage Range - 5V-40kV, 5V-80kV with add-on resistors
  • Use on Secondary Voltages - starting at 5V
  • Auto-Ranging - no range selector switch
  • Accuracy - highly accurate, within 1% of reading +/- 3 counts
  • Backlit Display - for easy reading in bright or dark conditions
  • Peak Hold Mode - conveniently keeps the peak voltage reading on the display
  • Measures AC and DC Voltages
  • Measure Voltage on Elbow Test Points - meter displays system voltage
  • Underground Cable Testing - test underground cables for faults
  • Auto-Shutoff - prevents battery drain
  • Coiled Connecting Cord - 3.5’ retracted, 12’ extended
  • Phase Accurate Technology - makes all voltage readings, whether line-to-line or line-to-ground, accurate and repeatable to within 1%
  • Battery - powered by a standard 9V alkaline battery in an easy to change battery case (no tools required)
  • Made in the USA

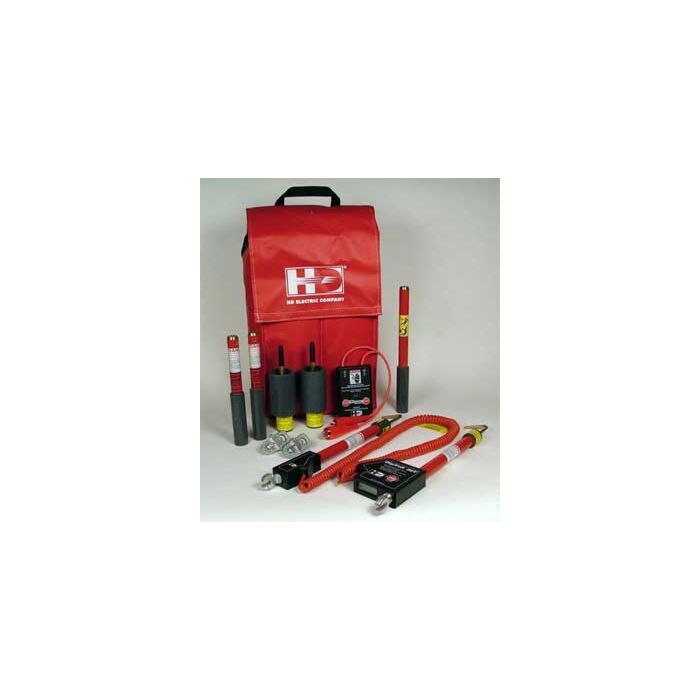

Each Unit Includes

  • Dual stick phasing voltmeter with overhead hook probes for use up to 40kV
  • Add-on resistor sticks for measurements up to 80kV
  • Underground bushing probes
  • Cable fault tester
  • Voltmeter proof tester
  • Shotgun hotstick adapters
  • Soft-sided, multi-functional carrying bag with built-in bucket hooks
