Fluke OneTouch™ AT Network Tester

The NEW G2 OneTouch AT network assistant is an automated All-in-one network tester for Ethernet and Wi-Fi troubleshooting and performance validation.

Why Buy the Fluke OneTouch AT from Transcat? Service. Selection. Price.

Transcat is a leading supplier of Fluke Network Tools, and can offer short or long term rentals on the most popular products. Check out our ordering guide to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!











Troubleshoot copper, fiber optic and Wi-Fi network problems from a client device to cloud-hosted applications and everything in between - even when you are not there. Troubleshoot persistent network problems and validate network performance on-site in real-time. Troubleshoot intermittent network problems and identify vulnerabilities by automatically uploading results to the cloud for web-based performance trending and root cause analysis.

Network technicians spend 25 percent of their time troubleshooting—taking time away from critical tasks such as deploying new technologies, and optimizing network performance. With most problems requiring an hour or more to solve and 40% requiring escalation, end-user productivity also suffers. Based on a recent Fluke Networks’ study, 72% of IT organizations operate without a standardized troubleshooting process. Making the situation worse is the fact that intermittent problems take more than twice as long to solve, and that staff spends on average five hours a week traveling to and from problem sites.

When IT organizations standardize the network troubleshooting process, technicians of various skill levels can solve more problems and be confident in the resolution.

The OneTouch™ AT Network Assistant

Reduces network troubleshooting time by standardizing network troubleshooting:

  • An All-in-one network tester for wired and Wi-Fi network analysis and discovery
  • Unique AutoTest profiles that provide “best practice” network troubleshooting methods for novice and expert technicians and identify the most common end user issues in about a minute
  • Automated test trending and a cloud-based service that deliver long term results analytics and charting for faster identification of intermittent issues – even when technician is away
  • Enhanced team collaboration through a simple web-remote interface and easy-to-use inline packet capture capability

By improving each step of the process, the OneTouch AT helps novice and expert network technicians solve more problems faster, escalate issues more efficiently and validate performance easily - saving up to a week of time each month.

ModelsStatus After 12/31/15Alternative Model
1T-1000 Limited Availability 1TG2-1500
1T-1500 Obsolete 1TG2-1500
1T-2000 Obsolete 1TG2-3000
1T-3000 Obsolete 1TG2-3000

Compare Products in this Series See all Results

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
NetScout 1T-ANT NetScout 1T-ANT

Onetouch AT External Directional Antenna

Order #: 1T-ANT

Usually ships in 7-10 days

$249.00 USD
Add Items to Cart Add to Quote

NetScout 1T-CAP-ADV-OPT NetScout 1T-CAP-ADV-OPT

Onetouch AT Capture And Adv Tests Option

Order #: 1T-CAP-ADV-OPT

Usually ships in 7-10 days

$2,495.00 USD
Add Items to Cart Add to Quote

NetScout 1T-WLAN-OPT NetScout 1T-WLAN-OPT

Onetouch AT WLAN Option

Order #: 1T-WLAN-OPT

Usually ships in 7-10 days

$3,495.00 USD
Add Items to Cart Add to Quote

NetScout 1T10G-1000-MOD-GS NetScout 1T10G-1000-MOD-GS

Onetouch AT 10G Test Module-Gold Special

Order #: 1T10G-1000-MOD-GS

Usually ships in 7-10 days

$4,796.00 USD
Add Items to Cart Add to Quote

NetScout 1T-1000 NetScout 1T-1000

OneTouch AT Copper & Fiber Ethernet Network Tester

Order #: 1T-1000

Usually ships in 7-10 days

$4,995.00 USD
Add Items to Cart

NetScout 1TG2-ETH-OPT NetScout 1TG2-ETH-OPT

Onetouch AT G2 Ethernet Upgrade

Order #: 1TG2-ETH-OPT

Usually ships in 7-10 days

$5,495.00 USD
Add Items to Cart Add to Quote

NetScout 1TG2-WIFI-OPT NetScout 1TG2-WIFI-OPT

Onetouch AT G2 Wi-Fi Upgrade

Order #: 1TG2-WIFI-OPT

Usually ships in 7-10 days

$5,495.00 USD
Add Items to Cart Add to Quote

NetScout 1T-1000/GLD NetScout 1T-1000/GLD

Onetouch AT 1000 + Gold Support 1 Year

Order #: 1T-1000/GLD

Usually ships in 7-10 days

$5,624.00 USD
Add Items to Cart Add to Quote

NetScout 1T-WLAN-CAPADV-OPT NetScout 1T-WLAN-CAPADV-OPT

Onetouch AT WLAN, Capture And Adv Tests Option

Order #: 1T-WLAN-CAPADV-OPT

Usually ships in 7-10 days

$5,745.00 USD
Add Items to Cart Add to Quote

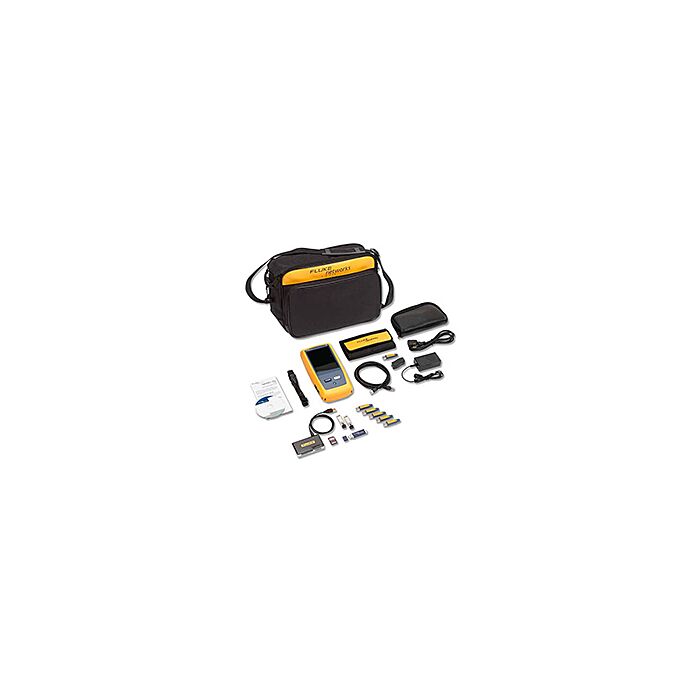

NetScout 1TG2-1500 NetScout 1TG2-1500

OneTouch AT G2 Ethernet Tester

Order #: 1TG2-1500

Usually ships in 7-10 days

$6,295.00 USD
Add Items to Cart

Overview :

Product Highlights

  • All-in-one network tester: combined copper, fiber optic and Wi-Fi network troubleshooting resolves a broad range of problems with one testing tool
  • Versatile: dual 10/100/1G copper/fiber Ethernet test ports and an 802.11a/b/g/n/ac Wi-Fi radio for use in multiple environments
  • Fast: one-button automated testing with pass/fail analysis speeds identification of the most common problems in about a minute
  • Easy: standardized network troubleshooting and performance validation empowers technicians of various skill levels to solve more problems with confidence
  • Complete: a comprehensive client view of performance isolates the problem root cause starting from the physical layer, through the network and to server-hosted applications
  • Cloud: automated, cloud-based results trending and performance analytics to troubleshoot intermittent client problems from anywhere using a web-connected device with a browser
  • Discover: automated wired and Wi-Fi discovery and analysis provides visibility into connected devices, key device properties, device interconnections and problems
  • Performance: end-to-end L2/L3 wired and Wi-Fi path performance measurement to a peer or a reflector to validate and document link readiness and SLA compliance
  • VoIP: inline VoIP call monitoring and comprehensive logging simplifies troubleshooting of desktop VoIP problems in real-time without taps or switch mirror ports
  • Capture: wired, Wi-Fi, VoIP and AutoTest packet capture streamlines collaboration and escalation of the most complex issues
  • Versiv™ test platform: expand capabilities by adding new modules as testing needs evolve

Specifications :

Specifications

General
Dimensions (with module and battery installed) 10.3 in x 5.3 in x 2.9 in (26.2 cm x 13.5 cm x 7.3 cm)
Weight (with module and battery installed) 3.5 lb (1.6 kg)
Display 5.7 in (14.5 cm) LCD with projected capacitance touchscreen, 480 x 640 pixels
AC adapter Input: 100-240 Vac, 50-60 Hz, 1.0 A
Output: +15 Vdc, 2.0 A
Battery type Lithium ion battery pack, 7.2 V
Battery life Approximately 3-4 hours depending on type of usage
4 hours to charge from 10% capacity to 90% capacity with the unit powered off
Memory Internal: 2 GB shared between system and user files
SD card: 4/8 GB, brand and model selected for optimal performance
USB 2.0 type A port: for use with USB mass storage devices
Wired Network Interface
Network analysis ports Two RJ-45 10/100/1000BASE-T Ethernet
Two Small Form-factor Pluggable (SFP) 100BASE-FX/1000BASE-X Ethernet
Management port

One RJ-45 10/100BASE-T Ethernet
One USB 802.11 (requires optional adapter)

Supported network standards IEEE 10BASE-T, IEEE 100BASE-T, IEEE 1000BASE-T, IEEE 100BASE-FX, IEEE 1000BASE-X
RFCs and standard MIBs used 1213, 1231, 1239, 1285, 1493, 1512, 1513, 1643, 1757, 1759, 2021, 2108, 2115, 2127, 2233, 2495, 2515, 2558, 2618, 2737, 2790, 2819, 3592, 3895, 3896, 4188, 4502.
Not for connection to telephone networks The OneTouch AT analyzer is NOT designed for connection to a telephone network.

The OneTouch AT analyzer is NOT designed for connection to an ISDN line.

Do not connect to a telephone network or ISDN line except through a regulatory agency compliant computer network modem device.
Wi-Fi Network Interface
Wi-Fi connectivity 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Data rate 802.11a: 6/9/12/24/36/48/54 Mbps
802.11b: 1/2/5.5/11 Mbps
802.11g: 6/9/12/24/36/48/54 Mbps
802.11n (20 MHz): MCS0-23, up to 216 Mbps
802.11n (40 MHz): MCS0-23, up to 450 Mbps
802.11ac(80 MHz):MCS0NSS1-MCS9NSS3, up to 1.3 Gbps
Operating frequency 2.412 ~ 2.484 GHz (Industrial Scientific Medical Band)
5.170 ~ 5.825 GHz
Security

64/128-Bit WEP Key, WPA, WPA2, 802.1X

Transmit output power1 (tolerance: ±2.0 dBm) 802.11a: 16 dBm ± 2 dBm @ 54 Mbps
802.11b: 20 dBm ± 2 dBm @ 11 Mbps
802.11g: 17 dBm ± 2 dBm @ 54 Mbps
802.11gn HT20: 17 dBm ± 2 dBm @ MCS23
802.11gn HT40: 16 dBm ± 2 dBm @ MCS23
802.11an HT20: 15 dBm ± 2 dBm @ MCS23
802.11an HT40: 15 dBm ± 2 dBm @ MCS23
802.11ac VHT20: 13 dBm +/- 2 dBm @ MCS8NSS3
802.11ac VHT40: 13 dBm +/- 2 dBm @ MCS9NSS3
802.11ac VHT80: 11 dBm +/- 2 dBm @ MCS9NSS3
Receive sensitivity (tolerance: ±2 dBm) 802.11b : -88dBm@11Mbps
802.11g : -74dBm@54Mbps
802.11gn : -69dBm@HT20,MCS23
802.11gn : -67dBm@HT40,MCS23
802.11a : -73dBm@54Mbps
802.11an : -68dBm@HT20,MCS23
802.11an : -66dBm@HT40,MCS23
802.11ac : -64dBm@VHT20, MCS8NSS3
802.11ac : -63dBm@VHT40, MCS9NSS3
802.11ac : -60dBm@VHT80, MCS9NSS3
1. The maximum power setting will vary by channel and according to individual country regulations.
Wi-Fi Antennas
Internal Wi-Fi antennas Three internal 2.4 GHz, 1.1 dBi peak, 5 GHz, 3.2 dBi peak antennas supporting 3x3 MIMO technology
External directional antenna Antenna, frequency range 2.4 - 2.5 and 4.9 - 5.9 GHz.
Minimum gain 5.0 dBi peak in the 2.4 GHz band, and 7.0 dBi peak in the 5 GHz band.
External antenna connector (external antenna port is receive-only, no transmit) Reverse SMA
Environmental and Regulatory
Operating temperature 32°F to 122°F (0°C to 50°C)
Battery charging temperature 32°F to 104°F (0°C to 40°C)
Storage temperature -40°F to 160°F (-40°C to 71°C)
-4°F to 122°F (-20°C to 50°C) for periods longer than 1 week
Operating relative humidity (% RH without condensation) 5% to 45% at 32°F to 122°F (0°C to 50°C)
5% to 75% at 32°F to 104°F (0°C to 40°C)
5% to 95% at 32°F to 86°F (0°C to 30°C)
Shock and vibration Meets the requirements of MIL-PRF-28800F for Class 3 Equipment
Safety CAN/CSA-C22.2 No. 61010-1-04, IEC 61010-1:2001
Operating altitude 13,123 ft (4,000 m), 10,500 ft (3,200 m) with ac adapter
Storage altitude 39,370 ft (12,000 m)
Pollution degree 2
EMC EN 61326-1:2006
Cables
Cable types 100 Ω Unshielded Twisted Pair (UTP) LAN cables.
100 Ω Shielded or Screened Twisted Pair (SeTP) LAN cables.
TIA Category 3, 4, 5, 5e, and 6. ISO Class C, D, E and F.
Cable length measurement Measurable cable lengths are from 3 feet (1 meter) to 656 feet (200 meters).
Accuracy: ± 6 feet (± 2 meters) or 5%, whichever is greater.
Length measurement is based on Nominal Velocity of Propagation (NVP) for CAT 5e cable.
Test Settings
Wired Speed, duplex, PoE, 802.1X, IPv4 address, IPv6 address, MAC address (port A can be changed by the user), VLAN, Wait for Rx Frame, Enabled Wired
Wi-Fi Band (2.4 and/or 5 GHz), authorization default, scan or connect, SSID, security, IPv4 address, IPv6 address, MAC address (Wi-Fi adapter can be changed by the user), Transmit Probes, Enable Wi-Fi, signal adjustment, noise floor adjustment
Analysis SNMP v1/v2, SNMP v3, Slow Discovery
Cloud Tools
Trending Use (wired port, Wi-Fi port, management port), duration (2 minutes to 1 week),interval (1, 2, 5, 10, 30, 60 minutes), proxy (off/on)
Claim Unit Claim, proxy (off/on)
Unit Name Text string
Cloud Remote On/Off
Maintenance Tools
Management port User and password security, Active Port (Wired/Wi-Fi), wired port configuration, Wi-Fi port configuration
Language (user interface) Chinese (simplified), English, French, German, Japanese, Korean, Portuguese, Russian, Spanish
Date/time, number, length Select format
Timeout period Backlight time, power down time
Audible tone On, off
Display Brightness
Factory defaults restore Quick, full (complete internal storage overwrite)
Version Information Module, platform
Product Registration Registered, Gold Support
Update Software Select Source
Options Enter product key
Export logs Export to SD card
Network Tests
Receive Rx optical power measurement accuracy varies by transceiver, typically ± 3.0 dB
Power over Ethernet (PoE) Single ended testing:
  • User-defined testing to IEEE 802.3at class 0, 1, 2, 3, 4 without LLDP negation, or 4 with LLDP negotiation
  • The following PSE PoE parameters are measured:
    • Received class
    • PSE type
    • Unloaded voltage(V)
    • Pairs used
    • Loaded voltage(V)
    • Loaded power(W)
Inline testing between PSE and PD devices:
  • PoE Negotiation between PSE and PD
  • The following PoE parameters are measured:
    • Pairs used
    • Voltage(V)
    • Current(mA)
    • Power(W)
Infrastructure Cable, link, PoE, nearest switch, nearest AP, DHCP server, DNS server, gateway
Wired Analysis hosts, access devices, servers, tools (port scan, add test, path analysis, multiport statistics,devices on port, browse, TELNET/SSH), sorts
Discovery protocols supported SNMP v1/v2/v3, CDP, EDP, LLDP, ICMP, ARP, FDP
Wi-Fi Analysis networks, access points, clients, channels, tools (name, authorization, connect, locate, capture), sorts, show active
Services Ping (ICMP), connect (TCP), web (HTTP), file (FTP), multicast (IGMP), video (RTSP), email (SMTP)
Wired Performance (local to remote)
  • Remote type: wired peer (upstream and downstream results, wired reflector (roundtrip results)
  • Compatible peer: OneTouch AT
  • Compatible reflector: LinkRunner Duo/Pro/AT
  • Rate: up to 1 Gbps
  • Loss limit % (pass/fail): 0, 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 50
  • Duration: 1 s, 2 s, 5 s, 10s , 30 s, 1 m, 2 m, 5 m, 1 h, 6 h, 12 h, 24 h
  • Frame size (byte): 64, 128, 256, 512, 1024, 1280, 1518, RFC 2544 sweep
  • DSCP: user defined
  • Port: user defined
  • Results: actual rate (bps), frames sent, received, lost, latency, jitter
  • Result presentation: table, graph
Wi-Fi Performance (local to remote)
  • Remote type: wired peer (upstream and downstream results, wired reflector (roundtrip results), wired port of the same OneTouch (upstream and downstream results)
  • Compatible peer: OneTouch AT
  • Compatible reflector: LinkRunner Duo/Pro/AT
  • Rate peer/reflector: up to 500 Mbps
  • Rate This OneTouch: up to 100 Mbps
  • Loss limit % (pass/fail): 0, 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 50
  • Duration: 1 s, 2 s, 5 s, 10s , 30 s, 60 s
  • Frame size (byte): 128 to 1518
  • DSCP: user defined
  • Port: user defined
  • Results: target rate (bps), frames sent, received, lost, loss, actual rate (bps), latency, jitter, out of sequence, ping response, return code, Wi-Fi layer 2 statistics, Wi-Fi layer 1 statistics
Testing Tools
Capture, Wired
  • Connection: Port A, Ports A and B, Inline
  • Filters: MAC, VLAN, IP, Port, IPv6
  • File size (MB): 1, 10, 100, 250, 500, 1000, 2000
  • Frame slice (B): 64, 128, 256, 512, 1024, 1280, 1518, 9600
  • AutoTest: off, on
Capture, Wi-Fi
  • Connection: Wi-Fi
  • Filters: channel, channel mode, device, frame type
  • File size (MB): 1, 10, 100, 250, 500, 1000, 2000
  • Frame slice (B): 64, 128, 256, 512, 1024, 1280, 1518, 9600
  • File format: ClearSight Analyzer, AirMagnet, WireShark, Qualcomm,pcap
  • AutoTest: off, on
VoIP Analysis
  • Inline call analysis
  • Protocols: unencrypted SIP and SCCP
  • Traffic statistics monitoring
  • Call log of protocol and conversation events
  • Call quality measurements (packets, dropped, burst, jitter, MOS, R-factor)
  • PoE measurements
Performance Peer Port number, enable Autostart
Browser port (management/wired/Wi-Fi)
Telnet/SSH Username/password (for SSH)
Toner IntelliTone™, analog 400 Hz, analog 1 kHz
Flash switch port 1s, 2s, 3s
FiberInspector™/Webcam real time, pause, scale (for fiber), save
File Tools
Profiles Save, delete, rename, export, import, load
AP authorization Save, delete, rename, export, import, load
Reports Save, delete, rename, export, import, view
Screens Save, delete, rename, export, import, view
