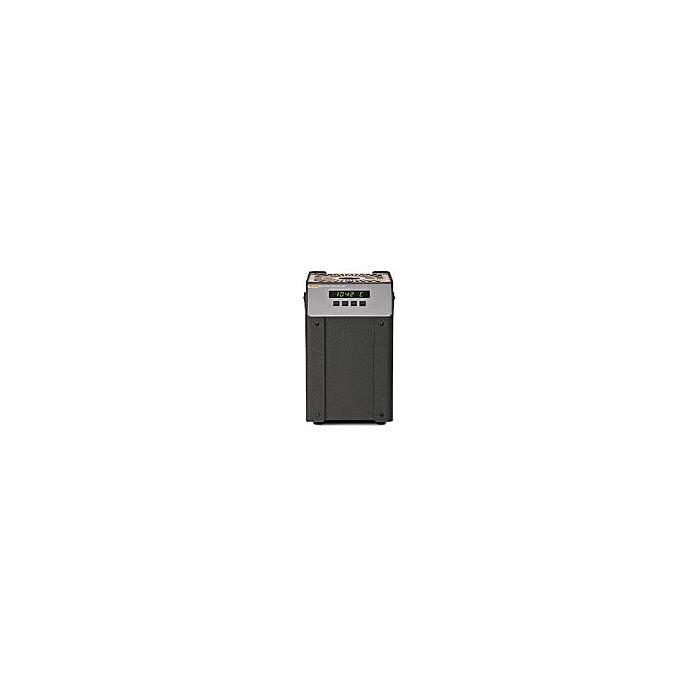

Fluke Calibration 9150 Thermocouple Furnace

With a stability of ±0.5 °C, it has a temperature range to 1200 °C and a display accuracy of ±5 °C across its entire range. With interchangeable temperature blocks, you can check thermocouples as small as 1/16 of an inch in diameter. The 9150 works with 115 or 230 VAC power.

Why Buy the Fluke Calibration 9150 from Transcat? Calibration. Selection. Price.

Transcat is a leading supplier of Fluke Calibration instruments, and can offer accredited calibrations on new orders. Check out our ordering guide to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!









The 9150 Thermocouple Furnace uses Fluke Calibration's own microprocessor-based controller for great stability and set-point accuracy. It has a removable well insert for versatility. It has rapid cool-down and heat-up times. And it comes with an RS-232 port for connection to a PC.

You can now afford to check your thermocouples with this excellent cost-effective instrument. Why pay more for features you don’t need and can’t use? Each unit is factory-calibrated and comes with test data and a calibration traceable to NIST.

9150
Temperature Range 150 °C to 1200 °C (302 °F to 2192 °F)
Display Resolution 0.1 ° to 999.9 ° 1 ° above 1000 °
Stability ±0.5 °C
Display Accuracy ±5 °C
Well Diameter 1.25 in (32 mm)
Well Depth 140 mm (5.5 in); (101 mm [4 in] removable insert plus 38 mm [1.5 in] insulator)
Heating Time 35 minutes to 1200 °C
Cooling Time 140 minutes with block
Well-to-Well Uniformity ±2.5 °C (Insert “C" at 1200 °C)
Stabilization 20 minutes
Power 115 V AC (±10 %), 10.5 A or 230 V AC (±10 %), 5.2 A, switchable, 50/60 Hz, 1200 W
Size (HxWxD) 315 mm x 208 mm x 315 mm (12.4 in x 8.2 in x 12.4 in)
Weight 13 kg (28 lb.)
NIST-Traceable Calibration Data at 150 °C, 300 °C, 450 °C, 600 °C, 800 °C, 1000 °C, and 1200 °C

Compare Products in this Series See all Results

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
Fluke Calibration 9150-B-156 Fluke Calibration 9150-B-156

TC Furnace, 302F to 2192F with 3150-3, 110V, 50/60Hz, 1200C

Order #: 9150-B

Usually ships in 7-10 days

$8,495.00 USD
Add Items to Cart Add to Quote

Fluke Calibration 9150-C-156 Fluke Calibration 9150-C-156

Thermocouple Furnace with 3150-4, 110V, 50/60 Hz, 1200C

Order #: 9150-C

Usually ships in 7-10 days

$8,495.00 USD
Add Items to Cart Add to Quote

Fluke Calibration 9150-A-156 Fluke Calibration 9150-A-156

Furnace, 1200C TC with 3150-2, 110V, 50/60Hz

Order #: 9150-A

Usually ships in 7-10 days

$8,495.00 USD
Add Items to Cart Add to Quote

Overview :

Product Highlights

  • Low cost thermocouple furnace
  • Low-cost thermocouple furnace
  • NIST-traceable calibration included
  • RS-232 port standard

Each Unit Includes

  • Insert
  • NIST Traceable Certificate
