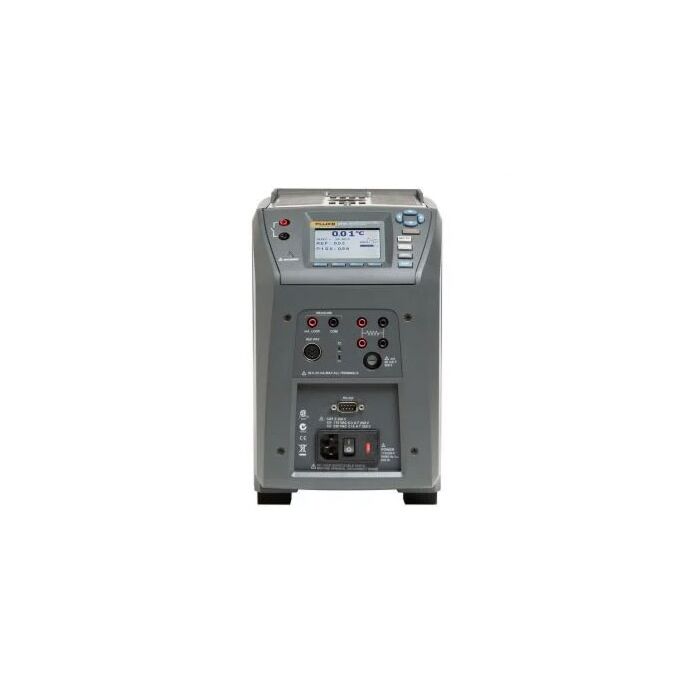

Fluke Calibration 9144-C-P-156

Dry-Well Field Calibrator, 115V with 9144-INSC & Built-in Elct.

Order #: 9144-C-P

Mfg Part #: 9144-C-P-156

$6,940.00 USD



Usually ships in 7-10 days

Free shipping over $250

This product is available for shipping to United States, Canada and Puerto Rico only

New Purchase Calibration Learn More

Save time and money by calibrating your new instrument before it leaves our warehouse, ensuring it arrives ready to be put into service. Find out how.

Add a Calibration to Your Item

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Fluke Calibration Products

Compare Products in this Series See all Results

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
Fluke Calibration 9141-DW-156 Fluke Calibration 9141-DW-156

High-Temperature Dry-Well Field Calibrator,No Insert,115V

Order #: 9141-DW

$4,430.00 USD
Fluke Calibration 9143-DW-156 Fluke Calibration 9143-DW-156

Mid-Temperature Dry-Well Field Calibrator, No Insert, 115V

Order #: 9143-DW

Usually ships in 7-10 days

$4,435.00 USD
Add Items to Cart Add to Quote

Fluke Calibration 9144-DW-156 Fluke Calibration 9144-DW-156

High-Temperature Dry-Well Field Calibrator, No Insert, 115V

Order #: 9144-DW

In Stock
$4,880.00 USD
Add Items to Cart Add to Quote

Fluke Calibration 9141-B-156 Fluke Calibration 9141-B-156

High-Temperature Dry-Well Field Calibratr.w/3141-3,110V,50/60Hz

Order #: 9141-B

$4,990.00 USD
Fluke Calibration 9141-C-156 Fluke Calibration 9141-C-156

High-Temperature Dry-Well Field Calibratr.w/3141-4,110V,50/60Hz

Order #: 9141-C

$4,990.00 USD
Fluke Calibration 9141-D-156 Fluke Calibration 9141-D-156

High-Temperature Dry-Well Field Calibratr.w/3141-6,110V,50/60Hz

Order #: 9141-D

$4,990.00 USD
Fluke Calibration 9141-A-156 Fluke Calibration 9141-A-156

Field Dry-Well Calibrator, Insert A(3141-2),50C to 650C

Order #: 9141-A-156-TRAN

$4,990.00 USD
Fluke Calibration 9143-E-156 Fluke Calibration 9143-E-156

Mid-Temperature Dry-Well Field Calibrator with 9143-INSE, 115V

Order #: 9143-E

Usually ships in 7-10 days

$5,020.00 USD
Add Items to Cart Add to Quote

Fluke Calibration 9143-A-156 Fluke Calibration 9143-A-156

Mid-Temperature Dry-Well Field Calibrator with 9143-INSA, 115V

Order #: 9143-A

Usually ships in 7-10 days

$5,020.00 USD
Add Items to Cart Add to Quote

Fluke Calibration 9143-B-156 Fluke Calibration 9143-B-156

Mid-Temperature Dry-Well Field Calibrator with 9143-INSB, 115V

Order #: 9143-B

Usually ships in 7-10 days

$5,020.00 USD
Add Items to Cart Add to Quote

Overview :

Product Highlights

  • Field Metrology Well, 50 °C to 660 °C, w/9144-INSX, w/Process Electronics
  • Temperature Range at 23 °C : 50 °C to 660 °C (122 °F to 1220 °F)
  • Display Accuracy: ± 0.35 °C at 50 °C ± 0.35 °C at 420 °C ± 0.5 °C at 660 °C
  • Stability: ± 0.03 °C at 50 °C ± 0.05 °C at 420 °C ± 0.05 °C at 660 °C
  • Axial Uniformity at 40 mm (1.6 in): ± 0.05 °C at 50 °C ± 0.35 °C at 420 °C ± 0.5 °C at 660 °C
  • Radial Uniformity: ± 0.02 °C at 50 °C ± 0.05 °C at 420 °C ± 0.10 °C at 660 °C
  • Loading Effect (with a 6.35 mm reference probe and three 6.35 mm probes): ± 0.015 °C at 50 °C ± 0.025 °C at 420 °C
  • ± 0.035 °C at 660 °C
  • Hysteresis: 0.1°C
  • Operating Conditions: 0 °C to 50 °C, 0 % to 90 % RH (non-condensing)
  • Environmental Conditions (for all specifications except temperature range): 13 °C to 33 °C
  • Immersion (Well) Depth: 150 mm (5.9 in)
  • Insert OD: 24.4 mm (0.96in)
  • Heating Time: 15 min: 50 °C to 660 °C
  • Cooling Time: 35 min: 660 °C to 50 °C 25 min: 660 °C to 100 °C
  • Resolution: 0.01 °
  • Display: LCD, °C or °F user-selectable
  • Size (H x W x D): 290 mm x 185 mm x 295 mm (11.4 x 7.3 x 11.6 in)
  • Weight: 17 lbs (7.7kg)
  • The process version provides a built-in two-channel thermometer readout that measures PRTs, RTDs, thermocouples, and 4-20 mA transmitters which includes the 24 V loop supply to power the transmitter.

Each Unit Includes

  • Insert C
  • RS-232 and 9930 Interface-it control software
  • Test Leads

Accessories :

Product Image MFG PART # PRODUCT DESCRIPTION Stock Status UNIT PRICE QTY
Fluke Calibration 9144-INSA 9144-INSA Insert, Imperial Misc Holes Holes: 3/8"; 1/4"; 3/16"; 1/8" In Stock

$530.00 USD

$477.00 USD

Fluke Calibration 9144-INSB 9144-INSB Insert ?B?, Imperial Comparison Holes: 3/8"; 1/4"; 3/16"; 1/8"

Usually ships in 7-10 days

$530.00 USD

$477.00 USD

Fluke Calibration 9144-INSD 9144-INSD Insert ?D?, Metric Comparison Holes: 3 mm; 4 mm; 6 mm

Usually ships in 7-10 days

$530.00 USD

$477.00 USD

Fluke Calibration 9144-INSE 9144-INSE Insert ?E? 9144, Metric Misc Holes with 0.25-inch Hole

Usually ships in 7-10 days

$530.00 USD

$477.00 USD

Fluke Calibration 9144-INSF 9144-INSF Insert ?F?, Metric Comparison Misc Holes with 0.25-inch Hole

Usually ships in 7-10 days

$530.00 USD

$477.00 USD

Fluke Calibration 9144-INSZ 9144-INSZ Blank Insert ?Z? for 9144 Field Metrology Well

Usually ships in 7-10 days

$530.00 USD

$477.00 USD
