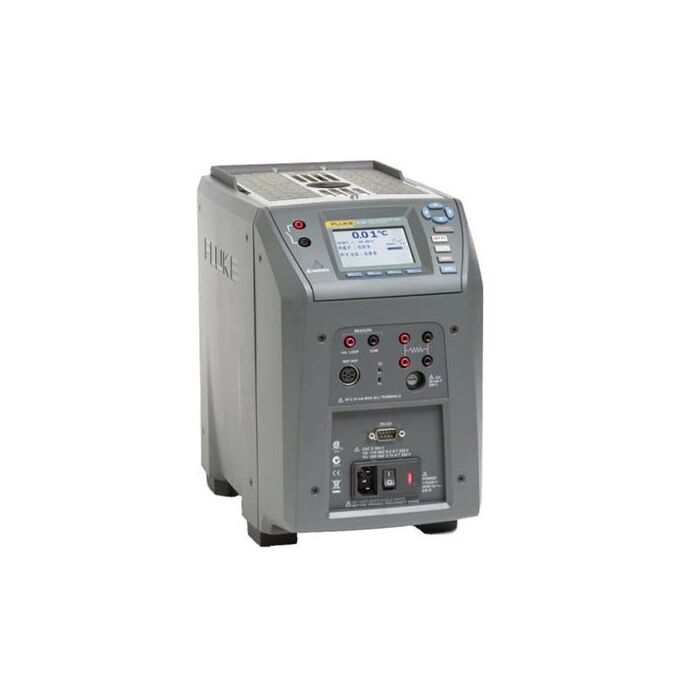

Fluke Calibration 9142-B-P-156

Dry-Well Field Calibrator, 115V with 9142-INSB & Built-in Elct.

Order #: 9142-B-P

Mfg Part #: 9142-B-P-156

$8,000.00 USD



Usually ships in 7-10 days

Free shipping over $250

This product is available for shipping to United States, Canada and Puerto Rico only

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Fluke Calibration Products

Compare Products in this Series See all Results

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
Fluke Calibration 9141-DW-156 Fluke Calibration 9141-DW-156

High-Temperature Dry-Well Field Calibrator,No Insert,115V

Order #: 9141-DW

$4,430.00 USD
Fluke Calibration 9143-DW-156 Fluke Calibration 9143-DW-156

Mid-Temperature Dry-Well Field Calibrator, No Insert, 115V

Order #: 9143-DW

Usually ships in 7-10 days

$4,435.00 USD
Add Items to Cart Add to Quote

Fluke Calibration 9144-DW-156 Fluke Calibration 9144-DW-156

High-Temperature Dry-Well Field Calibrator, No Insert, 115V

Order #: 9144-DW

In Stock
$4,880.00 USD
Add Items to Cart Add to Quote

Fluke Calibration 9141-B-156 Fluke Calibration 9141-B-156

High-Temperature Dry-Well Field Calibratr.w/3141-3,110V,50/60Hz

Order #: 9141-B

$4,990.00 USD
Fluke Calibration 9141-C-156 Fluke Calibration 9141-C-156

High-Temperature Dry-Well Field Calibratr.w/3141-4,110V,50/60Hz

Order #: 9141-C

$4,990.00 USD
Fluke Calibration 9141-D-156 Fluke Calibration 9141-D-156

High-Temperature Dry-Well Field Calibratr.w/3141-6,110V,50/60Hz

Order #: 9141-D

$4,990.00 USD
Fluke Calibration 9141-A-156 Fluke Calibration 9141-A-156

Field Dry-Well Calibrator, Insert A(3141-2),50C to 650C

Order #: 9141-A-156-TRAN

$4,990.00 USD
Fluke Calibration 9143-E-156 Fluke Calibration 9143-E-156

Mid-Temperature Dry-Well Field Calibrator with 9143-INSE, 115V

Order #: 9143-E

Usually ships in 7-10 days

$5,020.00 USD
Add Items to Cart Add to Quote

Fluke Calibration 9143-A-156 Fluke Calibration 9143-A-156

Mid-Temperature Dry-Well Field Calibrator with 9143-INSA, 115V

Order #: 9143-A

Usually ships in 7-10 days

$5,020.00 USD
Add Items to Cart Add to Quote

Fluke Calibration 9143-B-156 Fluke Calibration 9143-B-156

Mid-Temperature Dry-Well Field Calibrator with 9143-INSB, 115V

Order #: 9143-B

Usually ships in 7-10 days

$5,020.00 USD
Add Items to Cart Add to Quote

Overview :

Product Highlights

  • Field Metrology Well, –25 °C to 150 °C, w/9142-INSX, w/Process Electronics
  • Temperature Range at 23 °C: –25 °C to 150 °C (–13 °F to 302 °F)
  • Display Accuracy: ± 0.2 °C Full Range
  • Stability: ± 0.01 °C Full Range
  • Axial Uniformity at 40 mm (1.6 in): ± 0.05 °C Full Range
  • Radial Uniformity: ± 0.01 °C Full Range
  • Loading Effect (with a 6.35 mm reference probe and three 6.35 mm probes): ± 0.006 °C Full Range
  • Hysteresis: 0.025 °C
  • Operating Conditions: 0 °C to 50 °C, 0 % to 90 % RH (non-condensing)
  • Environmental Conditions: 13 °C to 33 °C
  • Immersion (Well) Depth: 150 mm (5.9 in)
  • Insert OD: 30 mm (1.18 in)
  • Heating Time: 16 min: 23 °C to 140 °C, 23 min: 23 °C to 150 °C, 25 min: –25 °C to 150 °C
  • Cooling Time: 15 min: 23 °C to –25 °C, 25 min: 150 °C to –23 °C
  • Resolution: 0.01 °
  • Display: LCD, °C or °F user-selectable
  • Size (H x W x D): 290 mm x 185 mm x 295 mm (11.4 x 7.3 x 11.6 in)
  • Weight: 8.16 kg (18 lb)
  • Process version provides a built-in two-channel thermometer readout that measures PRTs, RTDs, thermocouples, and 4-20 mA transmitters which includes the 24 V loop supply to power the transmitter.

Each Unit Includes

  • Insert B
  • RS-232 and 9930 Interface-it control software
  • Test Leads

Accessories :

Product Image MFG PART # PRODUCT DESCRIPTION Stock Status UNIT PRICE QTY
Fluke Calibration 9142-INSA 9142-INSA Insert A for 9142,Imperial Misc Holes:1/4";3/16";1/8";3/8"

Usually ships in 3-5 days

$415.00 USD

$373.50 USD

Fluke Calibration 9142-INSB 9142-INSB Insert B,Imperial,Comparison Holes:1/4";3/8";3/16"

Usually ships in 7-10 days

$415.00 USD

$373.50 USD

Fluke Calibration 9142-INSC 9142-INSC Insert C for 9142,0.25Holes- (6)1/4"

Usually ships in 7-10 days

$415.00 USD

$373.50 USD

Fluke Calibration 9142-INSD 9142-INSD Insert D,Metric Comparison Holes:3mm;4mm;6mm

Usually ships in 7-10 days

$415.00 USD

$373.50 USD

Fluke Calibration 9142-INSE 9142-INSE Insert E,Metric Misc.Holes incl (1)0.25"Hole

Usually ships in 7-10 days

$415.00 USD

$373.50 USD

Fluke Calibration 9142-INSF 9142-INSF Insert F,Metric Comparison Misc Holes incl.(1)0.25"Hole

Usually ships in 7-10 days

$415.00 USD

$373.50 USD

Fluke Calibration 9142-INSZ 9142-INSZ Blank Insert Z for 9142 Field Metrology Well

Usually ships in 7-10 days

$350.00 USD

$315.00 USD
