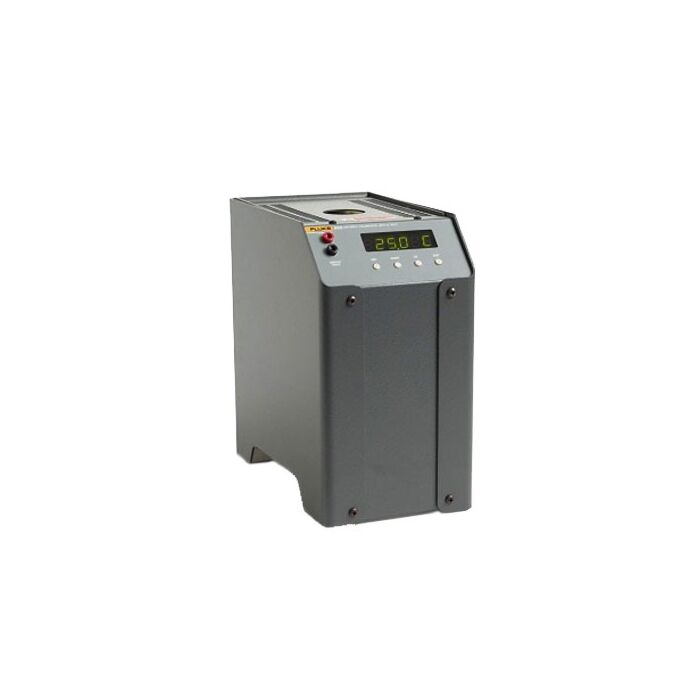

Fluke Calibration 9103-C-156 Field Dry-Well Calibrator with Insert (3103-4) 110V, 50/60Hz
Field Dry-Well Calibrator with Insert (3103-4) 110V, 50/60Hz
Order #: 9103-C
Mfg #: 1657967
$5,244.00
Fluke Calibration 9103-C-156 Field Dry-Well Calibrator with Insert (3103-4) 110V, 50/60Hz
Field Dry-Well Calibrator with Insert (3103-4) 110V, 50/60Hz
Order #: 9103-C
Mfg #: 1657967
$5,244.00
Availability: Ships in 3-4 weeks
Product Highlights
- Range: -25 °C to 140 °C (-13 °F to 284 °F) at 23 °C ambient
- Accuracy: ±0.25 °C
- Stability: ±0.02 °C at -25 °C ±0.04 °C at 140 °C
- Well-to-Well Uniformity: ±0.1 °C between similarly sized wells
- Heating Times: 18 minutes from ambient to 140 °C
- Cooling Times: 20 minutes from ambient to -25 °C
- Stabilization Time: 7 minutes
- Immersion Depth: 124 mm (4.875")
- Size(WxHxD): 143 x 261 x 245 mm
- (5.63 x 10.25 x 9.63 in)
- Weight: 12 lb (5.7 kg)
- NIST-Traceable Certificate Data at: -25 °C, 0 °C, 25 °C, 50 °C, 75 °C,100 °C, and 140 °
Each Unit Includes
- Nist Traceable Certificate
- Insert C
