Fluke Calibration 9100S & 9102S Handheld Dry-Wells

Fluke Calibration's line of portable dry-wells is incredible. They’re the smallest, lightest, and most portable dry-wells in the world. And now they're better than ever!

Why Buy Fluke Calibration Handheld Dry-Wells from Transcat? Calibration. Selection. Price.

Transcat is a leading supplier of Fluke Calibration instruments, and can offer accredited calibrations on new orders. Check out our ordering guide to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!

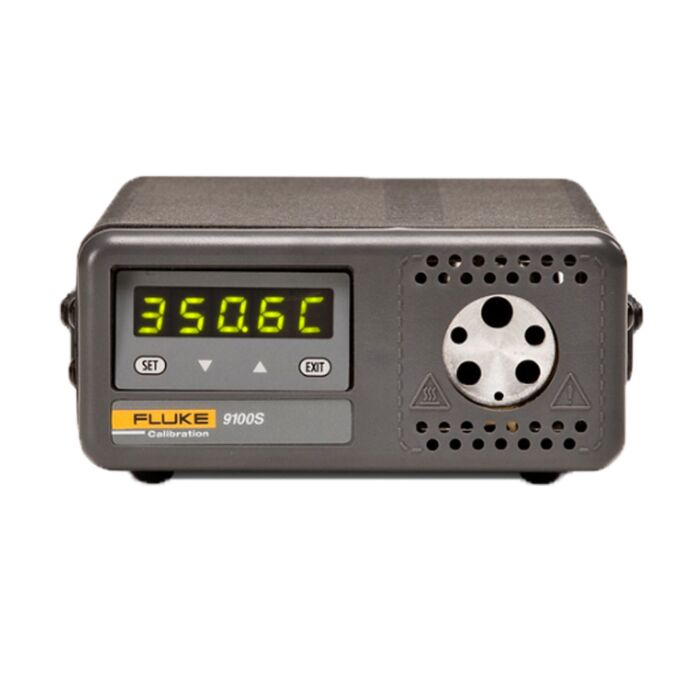

9100S Dry-Well

Since Fluke Calibration introduced the world’s first truly handheld dry-well, many have tried to duplicate it—in vain. Despite its small size (2¼ inches high and 5 inches wide) and light weight, the 9100S outperforms every dry-well in its class in the world.

It’s simple and convenient, too. Anyone can learn to use one in less than 15 minutes. It has a range to 375°C (707°F) and is perfect for checking RTDs, thermocouples, and small bimetal thermometers in the field.

9102S Dry-Well

For work in the temperature range of –10°C to 122°C, the Model 9102S dry-well is another first in the industry, featuring stability to ±0.05°C.

This dry-well is only four inches high and six inches wide, achieves temperatures as low as –10°C, includes a NIST-traceable calibration, and is stable to ±0.05°C. The Model 9102S is excellent for dial gauges, digital thermometers, bulb switches, and other sensors that need calibration below ambient.

Model9100S9102S
Range 35 °C to 375 °C (95 °F to 707 °F –10 °C to 122 °C (14 °F to 252 °F) at23 °C ambient
Accuracy ± 0.25 °C at 50 °C; ± 0.25 °C at 100 °C; ± 0.5 °C at 375 °C ± 0.25 °C
Stability ± 0.07 °C at 50 °C; ± 0.1 °C at 100 °C; ± 0.3 °C at 375 °C ± 0.05 °C
Well-to-Well Uniformity ± 0.2 °C with sensors of similar size at equal depths within wells
Heating Times 35 °C to 375 °C: 9.5 minutes ambient to 100 °C: 10 minutes
Stabilization 5 minutes 7 minutes
Cooling Times 375 °C to 100 °C: 14 minutes ambient to 0 °C: 10 minutes
Well Depth 102 mm (4 in);1.6 mm (1/16 in) hole is 89 mm (3.5 in) deep 102 mm (4 in)
Removable Inserts n/a Available in sizes from 1.6 mm (1/16 in) to 11.1 mm (7/16 in) [6.4 mm (1/4 in) and 4.8 mm (3/16 in) included]
Power 115 V ac (± 10 %), 55–65 Hz, 1.5 A or 230 V ac (± 10 %), 0.8 A, 45–55 Hz, 175 W 94-234 V ac (± 10 %), 50/60 Hz, 60 W;or 12 VDC
Size (HxWxD) 57 x 125 x 150 mm (2.25 x 4.9 x 6.1 in) 99 x 140 x 175 mm (3.9 x 5.5 x 6.9 in)
Weight 1 kg (2 lb 3 oz) 1.8 kg (4 lb)
Computer interface RS-232 included with free Interface-it software
NIST-Traceable Calibration Data at 50 °C, 100 °C, 150 °C, 200 °C,250 °C, 300 °C, and 375 °C Data at –10 °C, 0 °C, 25 °C, 50 °C, 75 °C,100 °C, and 122 °C

Compare Products in this Series See all Results

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
Fluke Calibration 9100S-D-156 Fluke Calibration 9100S-D-156

HH High-Temperature Dry Well Block D (Metric)

Order #: 9100S-D

In Stock
$2,090.00 USD
Add Items to Cart Add to Quote

Fluke Calibration 9100S-A Fluke Calibration 9100S-A

Handheld Dry-Well A, 35C to 375C (95F to 707F), NIST

Order #: 5853T

Usually ships in 7-10 days

$2,090.00 USD
Add Items to Cart Add to Quote

Fluke Calibration 9100S-B Fluke Calibration 9100S-B

Handheld Dry-Well B, 35C to 375C (95F to 707F), NIST

Order #: 5853T-1

In Stock
$2,090.00 USD
Add Items to Cart Add to Quote

Fluke Calibration 9100S-C Fluke Calibration 9100S-C

Handheld Dry-Well C, 35C to 375C (95F to 707F), NIST

Order #: 5853T-2

Usually ships in 7-10 days

$2,090.00 USD
Add Items to Cart Add to Quote

Overview :

Product Highlights

  • Smallest dry-wells in the world
  • Ranges from –10°C to 375°C
  • Accuracy to ±0.25°C, stability of ±0.05°C at 0°C
  • RS-232 interface with 9930 Interface-it v3.81 software

Each Unit Includes

  • NIST Certificate
  • Instructions
