Flowline LV42

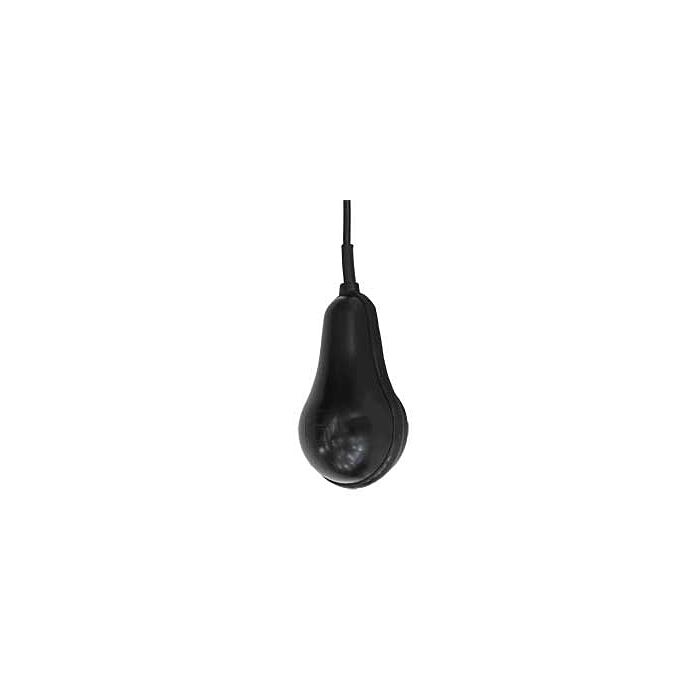

Switch Tek Large Sump Float

Order #: LV42-7501

Mfg Part #: LV42-7501

$205.00 USD



Usually ships in 7-10 days

Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Flowline Products

Overview :

Product Highlights

  • Mercury free self counter-weighted float switch
  • Submersible polypropylene body and PVC cable for corrosive liquids
  • 10 (3) A @ 250 VAC dry contact selectable NO or NC state via wiring selection
  • Compatible with counter weights and cable hangers for simple installation
  • Ideal for use in sewage water applications
  • Orientation: Vertical
  • Service: Compatible liquids, slurries
  • Contact type: SPDT (NO/NC)
  • Contact rating: 10 (3) A @ 250 VAC
  • Process temp.: F: -4° to 176°/C: -20° to 80°
  • Pressure: 29 psi (2 bar)
  • Sensor rating: IP68
  • Sensor material: Polypropylene
  • Cable jack. mat.: PVC
  • Weight (housing): 2.4 lb (1.1 kg)
  • Weight (cable): 0.77 lb (21.27g) per foot
  • Classification: General purpose
  • Compliance: CE

Each Unit Includes

  • Switch Tek Large Sump Float Switch
  • Quickstart Guide
