Flowline DL34-01

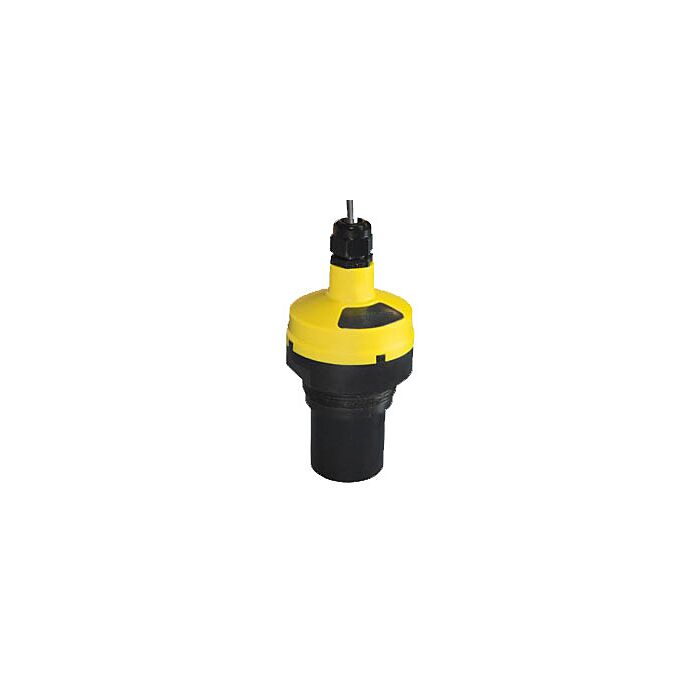

EchoPod (Yellow) Switch, Cont & Trans. - 5.5m range, 2 NPT

Order #: DL34-01

Mfg Part #: DL34-01

$625.00 USD



5 In stock

Free shipping over $250

New Purchase Calibration Learn More

Save time and money by calibrating your new instrument before it leaves our warehouse, ensuring it arrives ready to be put into service. Find out how.

Add a Calibration to Your Item

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Flowline Products

Overview :

Product Highlights

  • Level detection, switch and control functions up to 18.0' (5.5m)
  • Configuration is fast and easy via WebCal software and USB adapter
  • Narrow 3" beam width and short 8" dead band optimized for small tanks
  • Four (4) programmable relays rated @ 1A / 60VA for switch, pump or valve control and fail-safety
  • PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
  • Automatic temperature compensation for accurate measurement
  • Range: 18.0' (5.5m)
  • Accuracy: ± 0.2% of range
  • Resolution: 0.079" (2mm)
  • Dead band: 8" (20cm)
  • Beam width: 3" (7.62cm)
  • Configuration: WebCal® PC Windows® USB 2.0
  • Memory: Non-volatile
  • Supply voltage: 24 VDC (loop)
  • Consumption: 0.5W
  • Loop resist.: 400O max
  • Signal output: 4-20 mA, two-wire
  • Signal invert: 4-20 mA or 20-4 mA
  • Signal fail-safe: 4 mA, 20 mA, 21 mA, 22 mA or hold last
  • Contact type: (4) SPST relays
  • Contact rating: 60 VA, 1A maximum
  • Contact fail-safe: Power loss: Hold last Echo loss: Open, close or hold last
  • Hysteresis: Selectable
  • Process temp.: F: 20° to 140°C: -7° to 60°
  • Temp. comp.: Automatic
  • Ambient temp.: F: -31° to 140°C: -35° to 60°
  • Pressure: MWP = 30 PSI (2 bar)
  • Enclosure rating: Type 6P, encapsulated, corrosion resistant & submersible
  • Encl. material: Polycarbonate
  • Trans. material: PVDF
  • Cable jacket mat: Polyurethane
  • Cable type: 9-conductor, shielded
  • Cable length: 48" (1.2m)
  • Process mount: 2" NPT (2" G)
  • Mount gasket: Viton®
  • Classification: General purpose
  • Compliance: CE, RoHS
  • Approvals: cFMus
