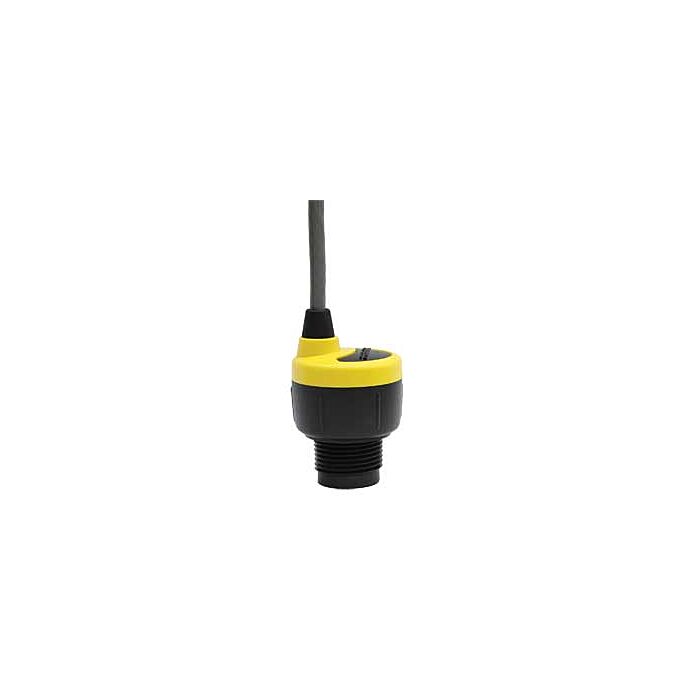

Flowline DL14-01
EchoPod Ultrasonic Level Sensor

Order #: DL14-01

Mfg #: DL14-01

Questions about availability or need help? Contact Us:

(800) 633-0561
$515.00

Flowline DL14-01

EchoPod Ultrasonic Level Sensor

Order #: DL14-01

Mfg #: DL14-01

$515.00
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

  • Switch and control functions with continuous level measurement output up to 49.2”
  • Configuration is fast and easy via WebCal Software and USB adapter
  • Narrow 2” beam width and short 2” dead band optimized for small tanks
  • Four (4) programmable relays rated @ 1A / 60VA for switch, pump or valve control and fail safety
  • PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
  • Range: 49.2" (1.25m)
  • Accuracy: 0.125" (3mm)
  • Resolution: 0.019" (0.5mm)
  • Dead band: 2" (5cm)
  • Beam width: 2" (5cm)
  • Configuration: WebCal® PC Windows® USB 2.0 USB 2.0
  • Memory: Non-volatile
  • Supply voltage: 24 VDC (loop)
  • Consumption: 0.5W
  • Loop resist.: 400O max
  • Signal output: 4-20 mA, two-wire
  • Signal invert: 4-20 mA or 20-4 mA
  • Signal fail-safe: 4 mA, 20 mA, 21 mA, 22 mA or hold last
  • Contact type: (4) SPST relays
  • Contact rating: 60 VA, 1A maximum
  • Contact fail-safe: Power loss: Hold last Power on: Open, close or hold last
  • Hysteresis: Selectable
  • Process temp.: F: 20° to 140°/C: -7° to 60°
  • Temp. comp.: Automatic
  • Ambient temp.: F: -31° to 140°/C: -35° to 60°
  • Pressure: MWP = 30 PSI (2 bar)
  • Enclosure rating: Type 6P, encapsulated, corrosion resistant & submersible
  • Encl. material: Polycarbonate
  • Strain relief mat.: Santoprene
  • Trans. material: PVDF
  • Cable jacket mat.: Polyurethane
  • Cable type: 9-conductor, shielded
  • Cable length: 48" (1.2m)
  • Process mount: 1" NPT (1" G)
  • Mount gasket: Viton®
  • Classification: General purpose
  • Compliance: CE, RoHS
  • Approvals: cFMus

Each Unit Includes

  • Multi-Function Ultrasonic Level Transmitter
  • USB FoB
  • Quickstart Guide
