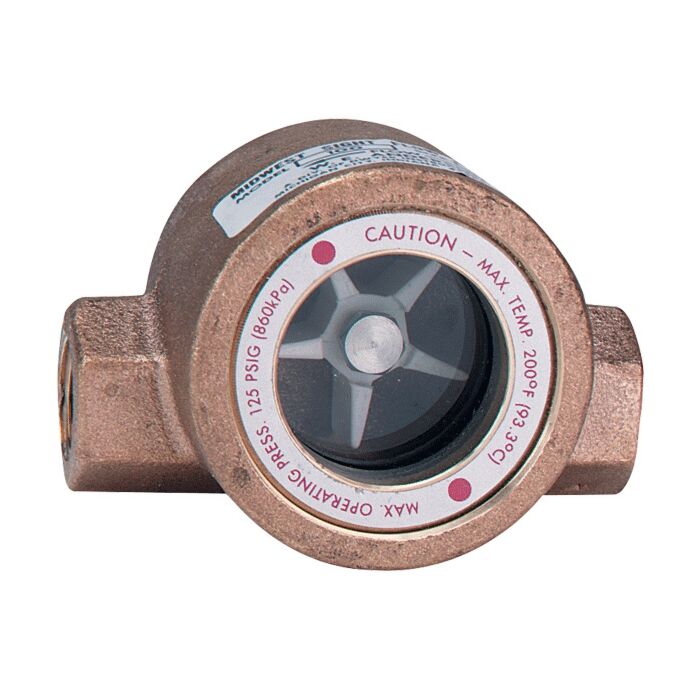

Dwyer Instruments SFI-100T-3/4-A711T

Sight Flow Indicator 3-35 GPM, 3/4" female NPT

The SFI-100T is a low cost and durable flow transmitter that combines our popular 100 Series Sight Flow Indicator with our A-711T output sensor. The SFI-100T sight flow indicator is constructed of a robust, solid brass body and a tempered glass window. A bright red impeller is featured for great visual indication of flow through the window. The front window can be easily unscrewed to clean out the sight flow indicator. Ideal for outdoor applications, the flow transmitter is weatherproof and unaffected by UV light. The A-711T output sensor has a VDC output with pulsing for flow totalization and a proportional frequency change for flow rate. For added versatility there are two output choices of 5 VDC or a VDC equal to the input power supplied. The output is compatible with digital rate meters/totalizers and other electronic systems. Output package is easily field replaceable Weatherproof construction UV stablized for outdoor applications There are no magnets in the rotor to attract ferrous materials

Order #: SFI-100T-3/4-A711T

Mfg Part #: SFI-100T-3/4-A711T

$179.00 USD

$173.63 USD


Ships in 2-3 weeks

Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

View All Dwyer Instruments Products

Compare Products in this Series

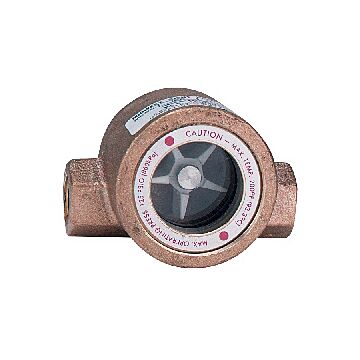

Dwyer Instruments SFI-100T-1/2-A711T Dwyer Instruments SFI-100T-1/2-A711T

Sight Flow Indicator 2-20 GPM, 1/2" female NPT

Order #: SFI-100T-1/2-A711T

Ships in 1-2 weeks

$179.00 USD

$173.63 USD

Add Items to Cart

Overview :

Product Highlights

  • Brass sight flow indicator with A-711T sensor
  • range 3-35 GPM (11.4-132.5 LPM)
  • 3/4" female NPT
