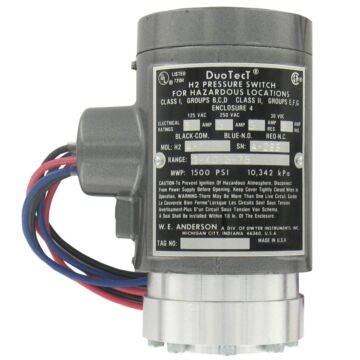

Dwyer Instruments H2S-2
Duotect Dual-action XP Pressure Sw, 25-250psig lo,30-400psig h

Order #: H2S-2

Mfg #: H2S-2

Questions about availability or need help? Contact Us:

(800) 633-0561
$2,064.40

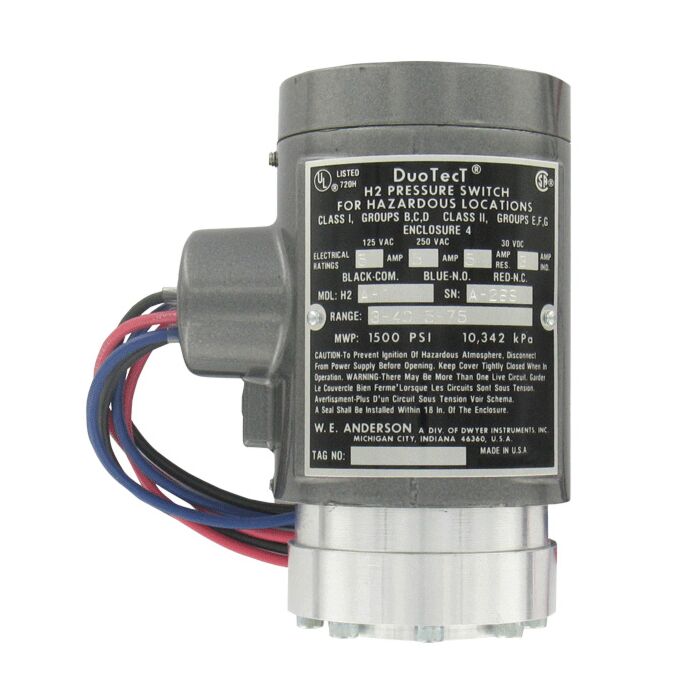

Dwyer Instruments H2S-2

Duotect Dual-action XP Pressure Sw, 25-250psig lo,30-400psig h

Order #: H2S-2

Mfg #: H2S-2

$2,064.40

Explosion-proof, UL & CSA Listed for Class I, Groups B, C & D and Class II, Groups E, F & G. The H2 is designed for sequencing two different actions as pressure of a liquid or gas increases or decreases. The design consists of two concentric pistons operated by a single diaphragm with one pressure chamber. Each piston actuates a separate switch independent of the other. The switches may be adjusted to operate together, at opposite ends of the range or at two intermediate set points. The threaded top is removed to field adjust or service switches without disturbing electrical or pressure connections. The Duotect switch is explosion-proof and weatherproof. It can be mounted in any position and is not affected by vibration.

Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States and Canada only.

Product Highlights

  • 25-250, 30-400 psi
