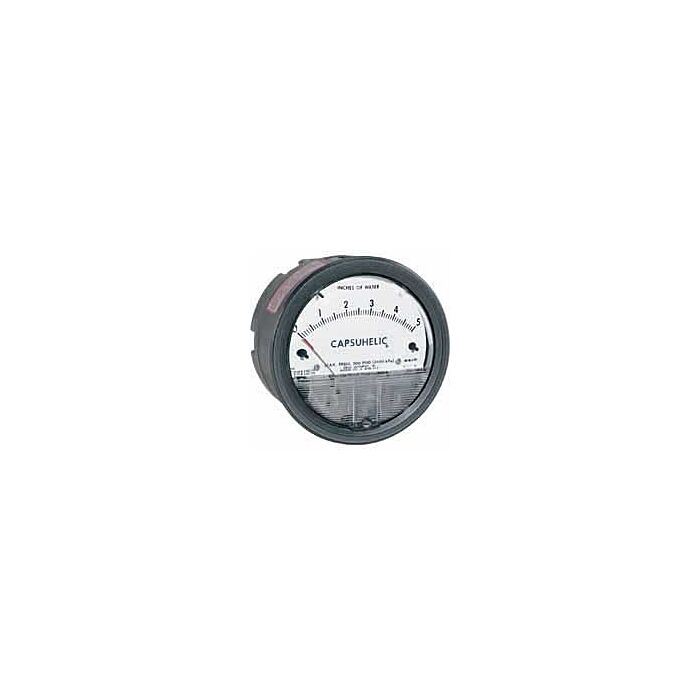

Dwyer Instruments 4003

Product Highlights

• Service: Aluminum Case: Air and compatible gases and oil based liquids. Brass Case: Air and compatible gases and water based liquids
• Wetted Materials: Consult factory
• Housing: Die cast aluminum with impregnated hard coating, standard
• Optional forged brass housing is required for water or water based fluids.Special material diaphragms available, contact factory
• Accuracy: ±3% of full scale at 70°F (21.1°C). (±2% on 4000S models, ±4% on 4200, 4210, 4215, 4220, 4300, 4400, and 4500)
• Pressure Limits: -20" Hg to 500 psig. (-0.677 bar to 34.4 bar)
• Temperature Limits: 20 to 200°F (-6.67 to 93.3°C)
• Size: 4" (101.6 mm) diameter dial face
• Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations
• Process Connections: 1/4" female NPT high and low pressure taps, duplicated - one pair top for air and gas, and one pair bottom for liquids
• Weight: 3 lb, 3 oz (1.45 kg) aluminum case; 7 lb, 13 oz (3.54 kg) brass case

Each Unit Includes

• Two 1/4" NPT plugs for duplicate pressure taps
• Four flush mounting adapters with screws
• Four surface mounting screws
