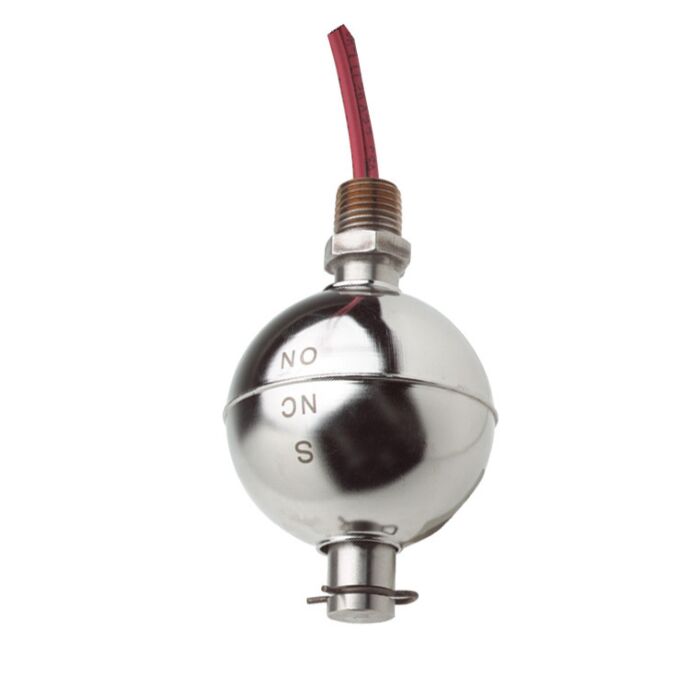

Dwyer Instruments F7-ST713

Vertical Level Switch 316SS stem, temp limit 300 F

Series F6 & F7 compact level switches combine low cost and reliability with fast, simple installation. Hermetically sealed reed switches are actuated by magnets permanently bonded inside the float and can be easily adapted to open or close a circuit on rising or falling levels.

Order #: F7-ST713

Mfg Part #: F7-ST713

$117.00 USD

$113.49 USD




Usually ships in 7-10 days

Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Dwyer Instruments Products

Compare Products in this Series

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
Dwyer Instruments F7-PP Dwyer Instruments F7-PP

Vertical Level Switch polypropylene stem, limit 220 F

Order #: F7-PP

Usually ships in 7-10 days

$15.50 USD

$15.04 USD

Add Items to Cart Add to Quote

Dwyer Instruments F7-BT Dwyer Instruments F7-BT

Vertical Level Sw, polybutylene terephthalate stem, limit 220 F

Order #: F7-BT

Usually ships in 7-10 days

$16.50 USD

$16.01 USD

Add Items to Cart Add to Quote

Dwyer Instruments F7-MPP-NO Dwyer Instruments F7-MPP-NO

Vertical Level Switch polypropylene stem, limit 176 F

Order #: F7-MPP-NO

Usually ships in 7-10 days

$38.25 USD

$37.10 USD

Add Items to Cart Add to Quote

Dwyer Instruments F7-SS2 Dwyer Instruments F7-SS2

Vertical Level Switch 316SS stem, temp limit 300 F

Order #: F7-SS2

Usually ships in 7-10 days

$41.25 USD

$40.01 USD

Add Items to Cart Add to Quote

Dwyer Instruments F7-BB Dwyer Instruments F7-BB

Vertical Level Switch Brass stem, temp limit 180 F

Order #: F7-BB

Usually ships in 7-10 days

$78.00 USD

$75.66 USD

Add Items to Cart Add to Quote

Dwyer Instruments F7-T1 Dwyer Instruments F7-T1

Vertical Level Switch TFE stem,temperature limit 300F

Order #: F7-T1

Usually ships in 7-10 days

$634.00 USD

$614.98 USD

Add Items to Cart Add to Quote

Overview :

Vertical mount models are shipped with normally open switch contacts which close as the float rises toward the mounting threads. Reverse switch action by removing the float, rotating it end-for-end and replacing it on the stem. Vertical models mount internally, oriented within 30 degrees of vertical, or select optional fittings for external mounting. Switch ratings are suitable for many solid state control systems and monitors or alarms. Simple relay interfaces can be used for higher current applications.

Product Highlights

  • Vertical level switch
  • 316SS float and stem
  • Temperature limit 300 F (149 C)
  • Pressure limit 750 psig (52 bar)
  • 0.80 min. specific gravity
  • Electrical rating 20 VA: 0.08A @ 240 VAC, 22 AWG 24" (61 cm) wire leads
  • 1/4" male NPT mounting
  • Weight 6 oz (170 g)
