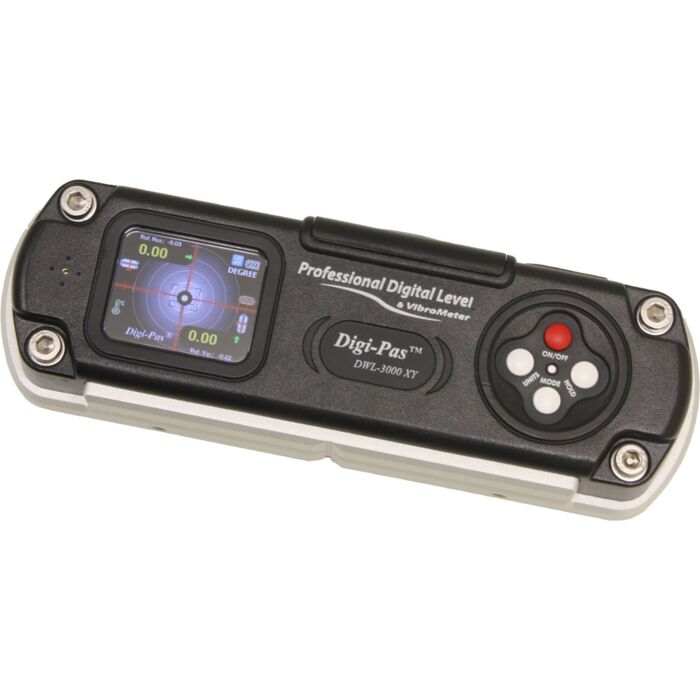

DigiPas DWL3000XY-B

Machinist level with Bluetooth & Professional Software

Order #: DWL3000XY-B

Mfg Part #: DWL3000XY-B

$1,750.00 USD



Usually ships in 7-10 days

Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All DigiPas Products

Overview :

Product Highlights

  • Dual axis measurement with color graphic readout
  • High resolution of 0.01 degree (0.002 Inch/Feet) on both X and Y axis
  • Angle measurement range of 0 to 90 degree for single axis and 0 to15 degree for dual axis with full temperature compensation.
  • Real-time remote access to PC or android based OS via blue tooth
  • Data logging capability available with Professional software upgrade (additional charge)
  • Built-in vibro-meter
  • Measurement range for single axis: 0.00 to +/- 90 degrees
  • Measurement range for dual axis: 0.00 to +/- 15.00 degrees
  • Resolution: 0.01 degrees
  • Accuracy: 0.01 degree at 0.00~+/-10.00 degrees; 0.03 degrees at other angles
  • Repeatability 0.01 degree
  • Magnetic base: Yes
  • Vibrometer (relative g): 1.0
  • Display: Color TFT LCD
  • Power Supply: 4 AAA 1.5V batteries or USB
  • Connectivity to PC: USB or Blue tooth (additional upgrade charge)
  • Operating temperature: 14 to 122 F
  • Storage temperature: -4 to 140 F
  • Dimension: 7.4 x 2.4 x 1.5 inches
  • Approx. net weight: 1.3 lbs

Each Unit Includes

  • Carrying case
  • 4 AAA batteries
  • USB cable
