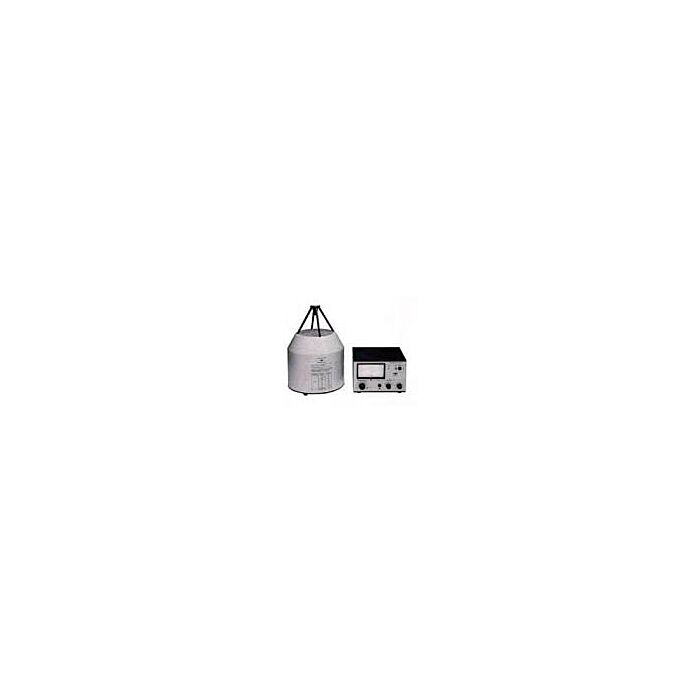

Bruel & Kjaer 4205 FOR RENT

Sound Power Source

Rent instruments from Transcat - Weekly and monthly rentals available. Weekly and monthly rentals available.
Request a Quote today!

Order #: 4205-RENT2

Mfg Part #: 4205

Call for Price




Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

Overview :

Bruel & Kjaer 4205 Highlights

  • External Filter : to Input
  • Signal : Pink noise, 100 Hz to 10 kHz
  • Output Voltage : 0.7 Vrms ± 0.1 V
  • Frequency Response : ± 1.5 dB
  • Output Impedance : < 10 Ω
  • Minimum Load Impedance : 500 Ω // 2 nF
  • External Filter : from Output
  • Input Impedance : 150 kΩ // 1 nF
  • Input Voltage, FSD : 115 mV RMS
  • Maximum Input Voltage : 10 V peak
  • Freq. Range : 50 Hz to 10 kHz
  • Freq. Response : ± 1 dB
  • Output Voltage : 1 Vrms ± 0.1 V
  • Output Impedance : < 10 Ω
  • Minimum Load Impedance : 5 kΩ // 2nF
  • Sound Source Dimensions : 345mm High / 240mm Diameter
  • Sound Source Weight : 3.5 kg
  • Generator Dimensions: 132.6 High x 209.5 Wide x 200mm Deep
  • Generator Weight : 3.0 kg
  • Batteries : 6 x 1.5V D cells
  • Battery Life : 2 hours at max output black or 10 hours at 80 dB re 1 pW SWL black
  • E&OE - specifications subject to change without notice
