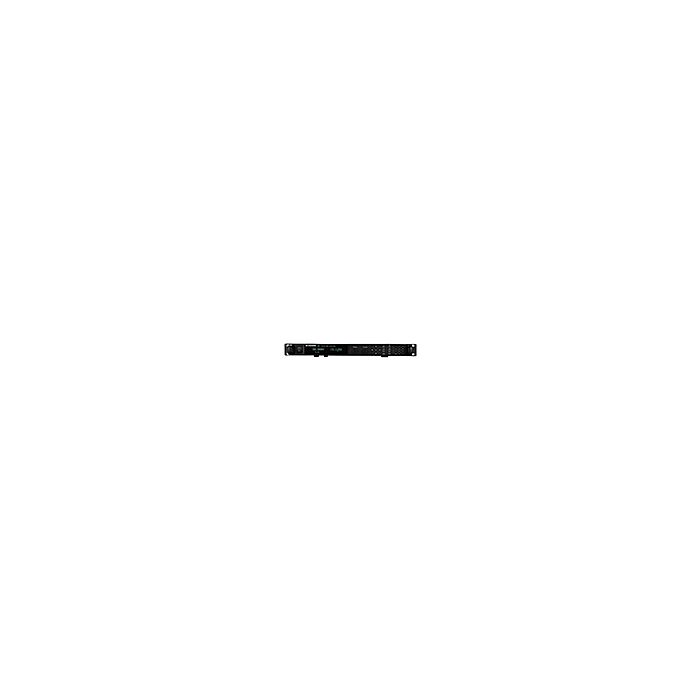

B&K Precision 9116

Multi-Range Programmable DC Power Supply,150V,30A

Any 9115 Series model can replace several supplies on your bench or in your rack. Unlike conventional supplies with fixed output ratings, these multi-range power supplies automatically recalculate voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits. For benchtop applications, this series provides a numerical keypad for direct data entry along with convenient cursors and analog style knobs to quickly make incremental voltage or current changes. Systems integrators benefit from the standard USB (USBTMC-compliant), RS-232, GPIB, RS-485, and LAN (9117 only) interfaces supporting SCPI commands. The 9115-AT provides automotive power test waveforms compliant to DIN 40839 and ISO 16750-2 standards that can simulate common test conditions for electrical and electronic devices installed in automobiles.

Order #: 9116BK

Mfg Part #: 9116

$1,995.00 USD



Usually ships in 7-10 days

Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All B&K Precision Products

Compare Products in this Series

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
B&K Precision 9115-AT B&K Precision 9115-AT

Multi-Range Programmable DC Power Supply,80V, 60A

Order #: 9115-AT

Usually ships in 7-10 days

$2,345.00 USD
Add Items to Cart Add to Quote

B&K Precision 9117 B&K Precision 9117

Multi-Range Programmable DC Power Supply,80V,120A

Order #: 9117BK

Usually ships in 7-10 days

$3,295.00 USD
Add Items to Cart Add to Quote

Overview :

Softpanel for remote control, test sequence generation, and data logging. This software also integrates with Data Dashboard for LabVIEW apps enabling iOS, Android or Windows 8 compatible tablets or smart phones to remotely monitor select measurement indicators.

Product Highlights

  • Multi-ranging operation (output up to max power rating within maximum voltage and current rating)
  • Compact, high density, 1U rackmount form factor (2U for 9117)
  • High programming and readback resolution
  • Adjustable voltage rise and fall times
  • Sequence programming (internal list mode for 9115, 9115-AT, and 9116)
  • Store and recall up to 100 instrument settings
  • Standard USB (USBTMC-compliant), RS-232, GPIB, RS-485, and LAN (9117 only) interfaces supporting SCPI commands for remote control
  • Analog interface with control and monitoring functions
  • Remote sense
  • Overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP), and key-lock function
