Ametek AT8000A Highlights

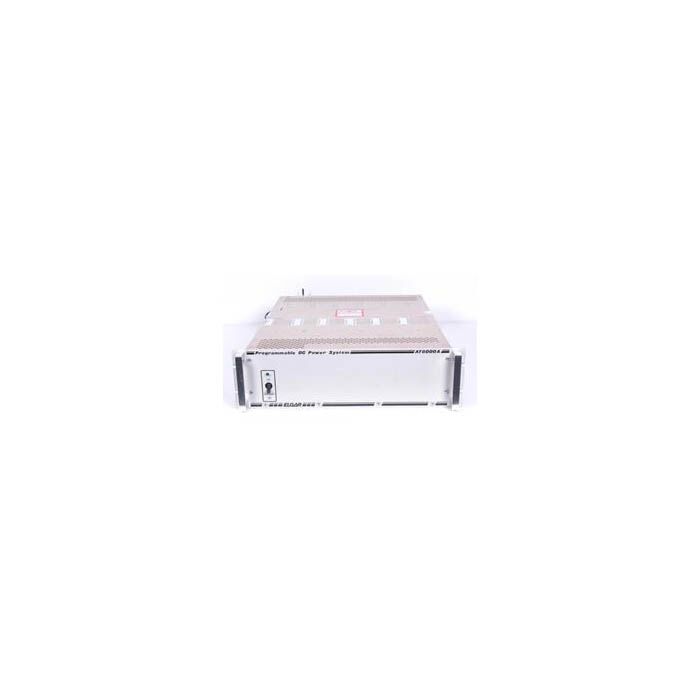

The Ametek / Elgar AT8000 / AT800A / AT8000B programmable multi-output DC power system accepts both power supply and electronic load modules simultaneously in a single high density 5-1/4" mainframe. Up to six fully independent channels of linear DC power and/or DC loads can be accommodated in one 19" wide rackmount chassis. The system can be expanded to 16 channels in master/ expansion chassis configurations. It can be controlled either locally from the front-panel keyboard or remotely via IEEE-488 GPIB using one selectable bus address. With the built-in test option, readback capability is available for voltage and current readings on DC power modules, Auxiliary Drive Modules (ADM) and electronic DC loads.
Six 200W DC power supply modules and/or 300W electronic loads can fit into one 5-1/4" mainframe. By paralleling power modules, a single chassis can deliver up to 1200W. Up to 16 independent channels of DC power can be controlled on a single selectable GPIB address for up to 19.2 kW in a multi-chassis system.
Built-in programming/communication languages of ABLE (Atlas Based Language Extension) (AT8000A and AT8000B) and CIIL (Control Interface Intermediate Language) (AT8000A) for MATE applications provides complete voltage, current and general system control via the IEEE-488 GPIB. Atlas Based Language Extension (ABLE) provides simple, easy to use mnemonics for concise programming. Control Interface Intermediate Language (CIIL) conforms to U.S. Air Force MATE guidelines.
- High-Density Programmable Multi-Ouput Power Supply System
- GPIB (IEEE-488) Interface
- Full ATE Qualified - MATE & CIIL Programmability
- Programmable Current, Voltage w/ Remote Sense Terminals
- Integrated Output Relay and also Independent SCR Crowbar for Rapid Grounding (Discharge)
