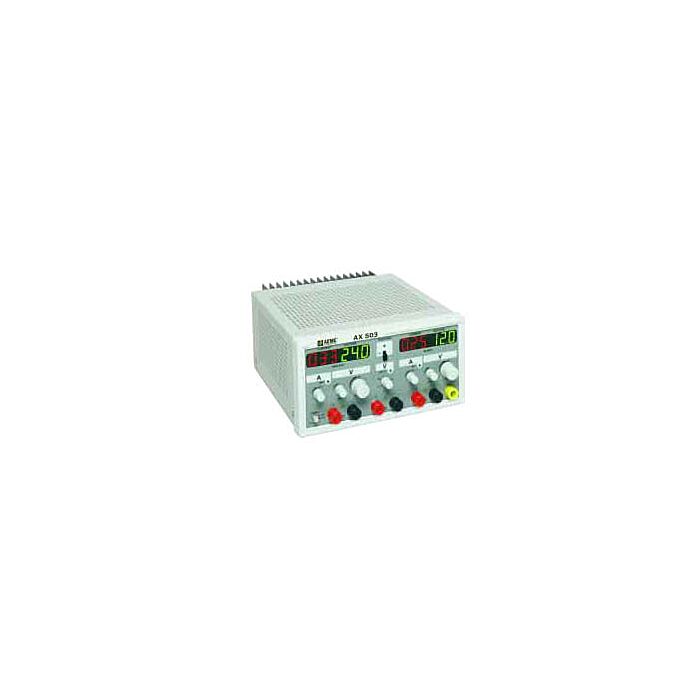

AEMC AX503
DC Power Supply, 3 Outputs

Order #: 2130.07

Mfg #: 2130.07

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $1,111.50 Regular Price $1,170.00

AEMC AX503

DC Power Supply, 3 Outputs

Order #: 2130.07

Mfg #: 2130.07

Special Price $1,111.50 Regular Price $1,170.00
Availability: Ships in 1-2 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

  • AEMC Model # AX503 AEMC Catalog # 2130.07
  • Adjustable 30VDC at up to 2.5A
  • Adjustable 5VDC at 5A with 3 and 5V positions
  • Connect the 30V outputs together to double voltage or current
  • Master/slave tracking with quick and easy setup
  • Coarse and Fine voltage adjustments
  • Current Limit adjustment with LED indication
  • Short circuit protected at full rated current
  • Display V and A simultaneously
  • Front panel safety input terminals
  • Front panel ground terminal
  • 3 Outputs (2 outputs at 0-30VDC and one at 2.7 to 5.5VDC)
  • Output 3 has no display
  • Voltage Display resolution: 100mV
  • Current resolution: 10mA
  • Accuracy: ±0.5% reading ±1ct
  • Ripple: ± 1mVrms
  • Dimensions: 10.63 x 8.86 x 7.73" (270 x 225 x 120 mm)
  • Weight: 13.2 lbs (6kg)

Each Unit Includes

  • Power Cord
  • Instruction Manual
