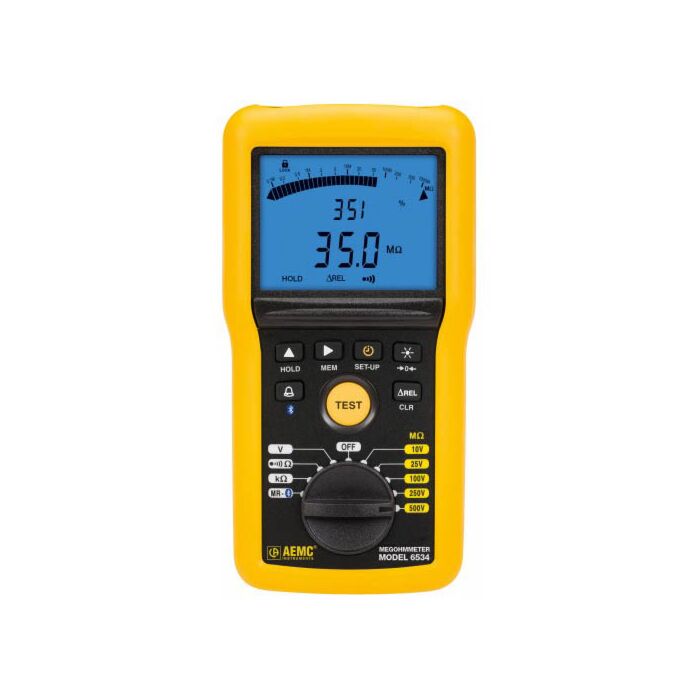

AEMC 6534

Digital Megohmmeter w/Analog Bargraph, Alarm, Bluetooth

The Megohmmeter Model 6534 is a handheld, battery powered, multi-function 500V digital insulation resistance tester. It is designed to measure Insulation Resistance, Continuity, Resistance and Voltage.

Order #: 6534-AEMC

Mfg Part #: 2155.55

$799.00 USD

$759.05 USD


Ships in 1-2 weeks

Free shipping over $250

New Purchase Calibration Learn More

Save time and money by calibrating your new instrument before it leaves our warehouse, ensuring it arrives ready to be put into service. Find out how.

Add a Calibration to Your Item

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All AEMC Products

Compare Products in this Series

AEMC 6522 AEMC 6522

Digital HH Megohmmeter Analog Bargraph 250V - 1000V

Order #: 6522

Ships in 2-3 weeks

$619.00 USD

$588.05 USD

Add Items to Cart Add to Quote

AEMC 6524 AEMC 6524

Multifunction Insulation Resistance Tester,1000V

Order #: 2155.52

Ships in 1-2 weeks

$699.00 USD

$664.05 USD

Add Items to Cart Add to Quote

AEMC 6526 AEMC 6526

Digital HH Megohmmeter Analog Bargraph 50V-1000V BT

Order #: 6526

Ships in 2-3 weeks

$719.00 USD

$683.05 USD

Add Items to Cart Add to Quote

AEMC 6532 AEMC 6532

Digital HH Megohmmeter Analog Bargraph 50V-100V

Order #: 6532

Ships in 2-3 weeks

$799.00 USD

$759.05 USD

Add Items to Cart Add to Quote

AEMC 6536 AEMC 6536

Digital HH Megohmmeter Analog Baragraph 10V-500V

Order #: 6536

Ships in 2-3 weeks

$819.00 USD

$778.05 USD

Add Items to Cart Add to Quote

Overview :

Product Highlights

With a safety rating of 600V CAT IV and IP 54, the Model 6534 performs insulation resistance at 10, 25, 100, 250 and 500V measuring insulation values up to 50GΩ. Meter also incorporates a 700V AC & DC True RMS voltmeter and continuity testing with a selectable 20mA or 200mA test current. The Model 6534 includes a Timer and Lock function which allows the user to operate the unit hands free. Automatic safety check protects user and meter with audiovisual signals and test inhibition when >25V is present on test sample. Alarms function is also standard. Large digital/analog multi-function display provides clear and easy readings enhanced by a bright blue electroluminescent backlight. A magnetic stand holds the meter to a metal surface or cabinet during the test. Optional Remote Test Probe accessory with flashlight simplifies repetitive testing and helps access hard-to-reach, poorly lit, test areas. With the possibility to save up to 1300 tests in memory and Bluetooth communication with DataView software, the Model 6534 will work well in electronics applications and production environments where a wide range of voltages, up to 500V, are desired.

  • True Megohmmeter®
  • 500V Insulation and Multi-Function Tester (Resistance, Continuity and Voltage)
  • 10V, 25V, 100V, 250V and 500V Insulation Test Voltages
  • 50GΩ Max Insulation Resistance
  • Timed Test Mode up to 40 minutes for Insulation Resistance Test
  • Test Lock feature for hands free timed measurements up to 15 minutes
  • Continuity tests at 20mA or 200mA
  • Test lead resistance compensation for accurate low resistance measurements
  • True RMS AC/DC Voltmeter up to 700V
  • Ohmmeter to 1000kΩ
  • Auto discharge after Insulation Test
  • Hold function to ""freeze"" readings
  • Large and bright dual display with blue backlight
  • Auto Standby Feature due to inactivity saves battery power
  • 1300 Measurement storage in memory
  • Bluetooth communication with included DataView software
  • Complies with International Insulation Testing Standards including IEC/EN 61557
  • 600V CAT IV
  • Optional Remote Probe accessory
  • Applications
      li>Insulation measurement on communication cables, Ethernet cables and other low voltage AC and DC wiring
    • Insulation measurement on electronic components and circuits
    • Special applications in the aerospace and defense sectors where specified test voltages are required
    • Cables, small motors, pumps, transformers and industrial equipment

Each Unit Includes

  • Soft Carrying Pouch
  • 2x 1.5m Test leads (red and black)
  • 2x alligator clips (red and black)
  • 1x black test probe
  • 2x grip probes (red and black)
  • 6 AA batteries
  • Quick start guide
  • USB stick with DataView Software
  • User manual
