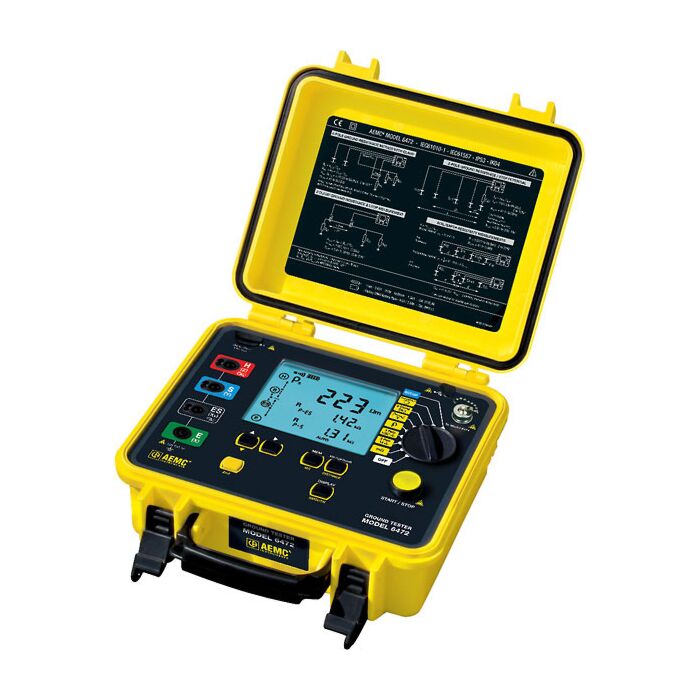

AEMC 6472 for Rent

Ground Resistance Tester Kit, FLV $4395

Rent instruments from Transcat - Weekly and monthly rentals available. Weekly and monthly rentals available.
Request a Quote today!

Order #: 2135.54-RENT1

Mfg Part #: 2135.54-RENT1

Call for Price




Free shipping over $250

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All AEMC Products

Compare Products in this Series See all Results

Product
NAME, DESCRIPTION
AND ORDER #
Stock
Status
UNIT PRICE QTY
AEMC 6471 AEMC 6471

Ground Resistance Tester Digital, 3 & 4-Point, Clamp-on

Order #: 2135.49

Usually ships in 3-5 days

$2,795.00 USD

$2,655.25 USD

Add Items to Cart Add to Quote

AEMC 6472 AEMC 6472

Ground Resistance Tester Digital, 4-Point, Bond Test

Order #: 2135.51

Usually ships in 3-5 days

$3,795.00 USD

$3,605.25 USD

Add Items to Cart Add to Quote

AEMC 6472 KIT-300FT AEMC 6472 KIT-300FT

Ground Resistance Tester Kit, 300' (Model 6472 & 2135.36)

Order #: 2135.53

Usually ships in 3-5 days

$4,299.00 USD

$4,084.05 USD

Add Items to Cart Add to Quote

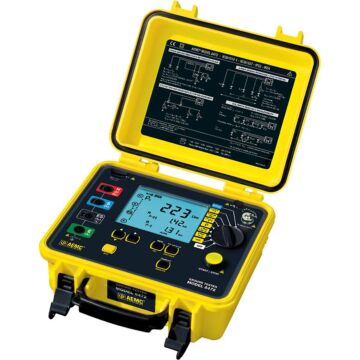

AEMC 6472 KIT-500FT AEMC 6472 KIT-500FT

Ground Resistance Tester Kit 500' (Model 6472 & 2135.37)

Order #: 2135.54

Usually ships in 3-5 days

$4,449.00 USD

$4,226.55 USD

Add Items to Cart Add to Quote

Overview :

Product Highlights

  • 4-Pole (4-Point) Fall-of-Potential measurement for very low resistance measurements with manual or automatic frequency selection and automatic lead compensation
  • 3-Point Fall-of-Potential measurement
  • 3-Point earth coupling measurement
  • Manual or automatic frequency scan from 40 to 513Hz for test accuracy in electrically noisy environments
  • Earth coupling testing
  • Selectable test voltage 16 or 32V up to 250mA test current
  • 4-Point soil resistivity measurement with automatic calculation of Rho and user selection of Wenner or Schlumberger test method
  • 2- and 4-Wire DC resistance measurement (Bond testing) with automatic polarity reversal
  • Ground Resistance with 2 clamps (no auxiliary rods)
  • Ground Resistance of Pylons with the GroundFlex® Adapter Model 6474 and GroundFlex® sensors allow the system to measure leakage current and ground resistance of tower legs without disconnecting the overhead ground conductor.
  • Includes DataView® software for data storage, real-time display, analysis, report generation and system configuration
  • Auto-off power management
  • Automatic recognition of all electrode connections and their resistance value
  • Stores up to 512 complete test results in internal memory
  • Optically isolated USB communication
  • Rechargeable NiMH batteries from wall charger or vehicle power
  • Rugged dustproof and rainproof field

Each Unit Includes

  • Instrument
  • Two 500 ft color-coded leads on spools (red and blue)
  • Two 100 ft color-coded leads (green and black)
  • One 30 ft lead (green)
  • Four 14.5" T-shaped auxiliary ground electrodes
  • One set of five spaded lugs
  • 100 ft tape measurer
  • Carrying bag
