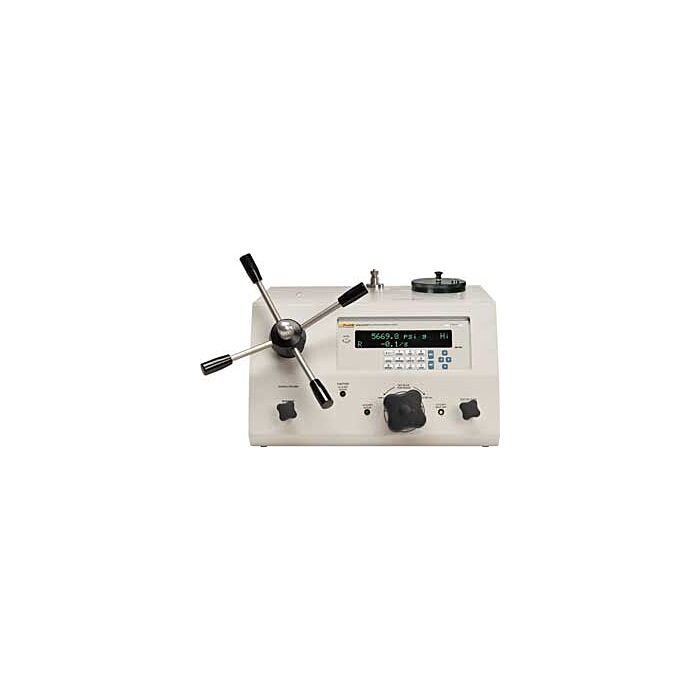

Fluke Calibration 6531-200M-B

E-DWT-H A200M, 20 to 200 Mpa, 6,000 to 30,000 psi

Order #: 6531-200M-B

Mfg Part #: 6531-200M-B

$26,800.00 USD

Ships in 2-3 weeks

Free shipping over $250

New Purchase Calibration Learn More

Save time and money by calibrating your new instrument before it leaves our warehouse, ensuring it arrives ready to be put into service. Find out how.

Add a Calibration to Your Item

Add Items to Cart

Request a Calibration Quote

Transcat can calibrate your existing instruments.

Request a Calibration Quote

Rent From Transcat

Do you need a test instrument for a short time?

Request a Rental Quote

click on image to view gallery image(s)

View All Fluke Calibration Products

Compare Products in this Series

Fluke Calibration 6531-20M Fluke Calibration 6531-20M

E-DWT-H A20M, 2 to 20 MPa, 300 to 3,000 psi

Order #: 6531-20M

Ships in 2-3 weeks

$26,500.00 USD
Add Items to Cart Add to Quote

Fluke Calibration 6531-70M Fluke Calibration 6531-70M

E-DWT-H A70M, 7 to 70 MPa, 1,000 to 10,000 psi

Order #: 6531-70M

Ships in 2-3 weeks

$26,500.00 USD
Add Items to Cart Add to Quote

Fluke Calibration 6531 Fluke Calibration 6531

E-DWT Electronic DWT,200mPa 30K PSI

Order #: 6531-200M

$28,400.00 USD
Fluke Calibration 6532-200M-B Fluke Calibration 6532-200M-B

E-DWT-H A200M/A20M, 4 to 200 MPa, 600 to 30,000 psi

Order #: 6532-200M-B

Ships in 2-3 weeks

$36,900.00 USD
Add Items to Cart Add to Quote

Overview :

Product Highlights

  • One-year measurement uncertainty is ± 0.02% of reading from 10% to 100% with one Q-RPT, and from 1% to 100% with two Q-RPTs
  • Low torque variable volume allows for pressure generation up to 200 MPa (30,000 psi) with minimal physical effort
  • Separate fine adjustment tool for maximum, superfine control resolution
  • User defined resolution and ready limits enable user to optimize performance based on DUT specifications
  • High pressure isolation valve and pressure relief valve protect the low pressure reference transducer from over pressure when high pressure reference transducer is active
  • AutoRange feature optimizes measurement and safety features for the specific range of the instrument being calibrated
  • Simple rezeroing while vented at atmospheric pressure
  • Simple, objective pressure “ready/not ready indicator with user adjustable criteria to ensure repeatable results among operators
  • Not dependent on local gravity or ambient temperature
  • Sets and reads any pressure value directly in any unit of measure, without moving weights
  • Built-in priming system to fill system with test fluid and purge unwanted air to assure smooth operation
  • Optional foot switch accessory allows hands-free data collection when running AutoTests

Each Unit Includes

  • E-DWT-H Electronic Deadweight Tester with power supply and operating manual
  • Vacuum liquid fill kit
  • Test station quick-mount fitting
  • NPT adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
  • BSP adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
  • Metric adapters: M20 x 1.5 and M14 x 1.5
